Revolution 'RSS' Sails

Additional link elements.

2

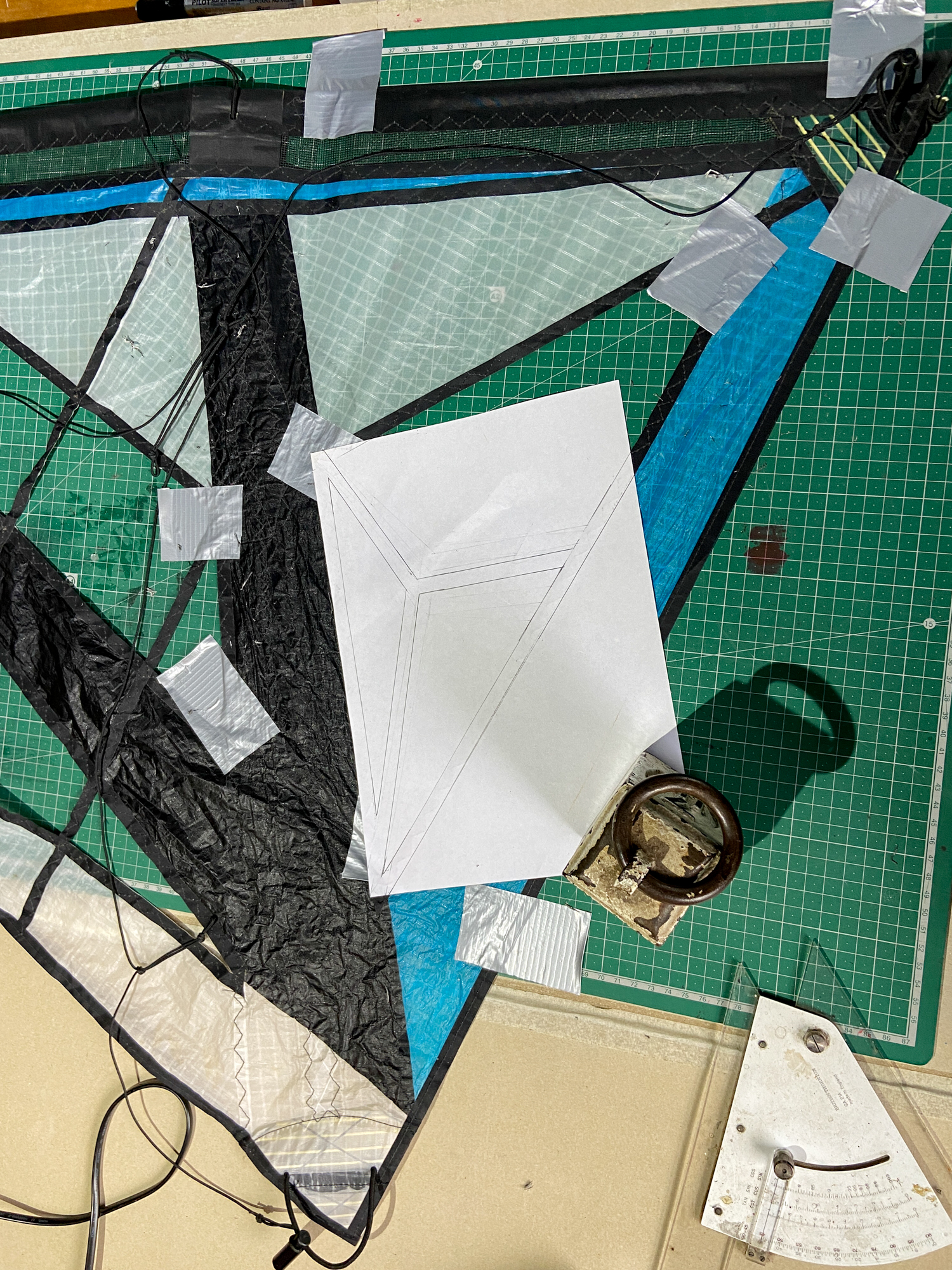

As at 19th Septemeber 2023 a sail was secured and a plan drawn based on the production model illustrated on the company web site.
4

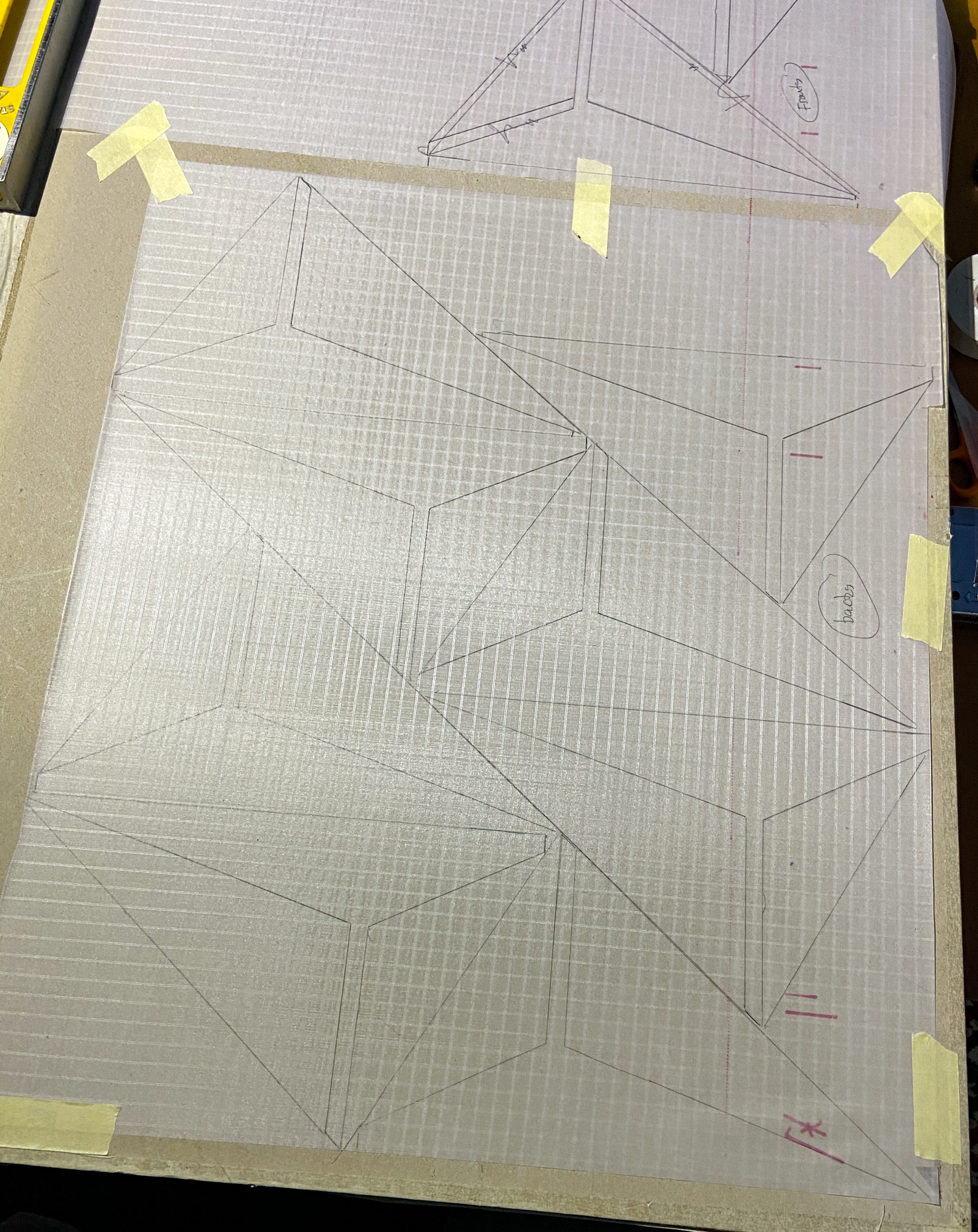

A folding template was prepared and used to make 8 drawings on one side of the white ripstop and 8 on the reverse side.
5

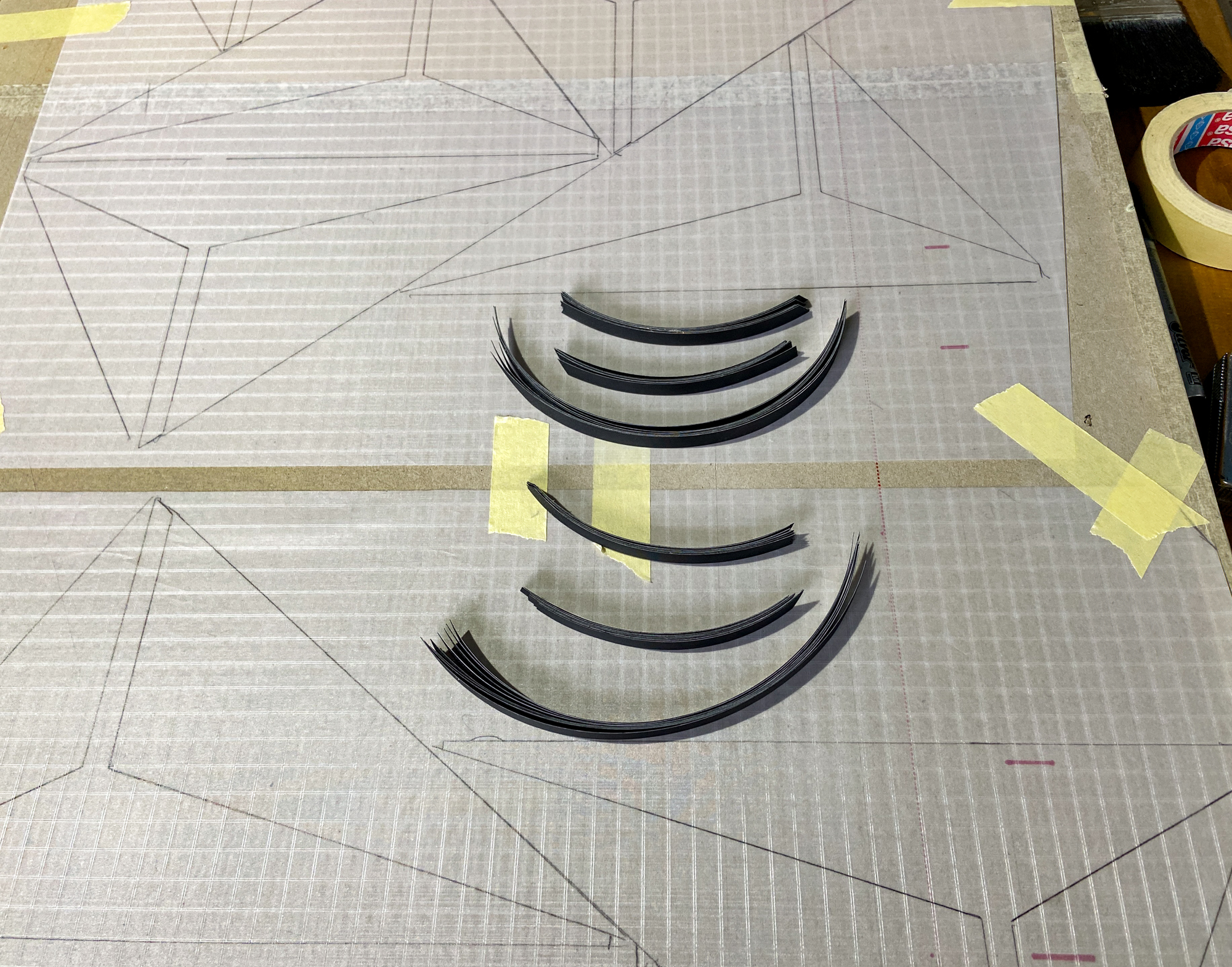

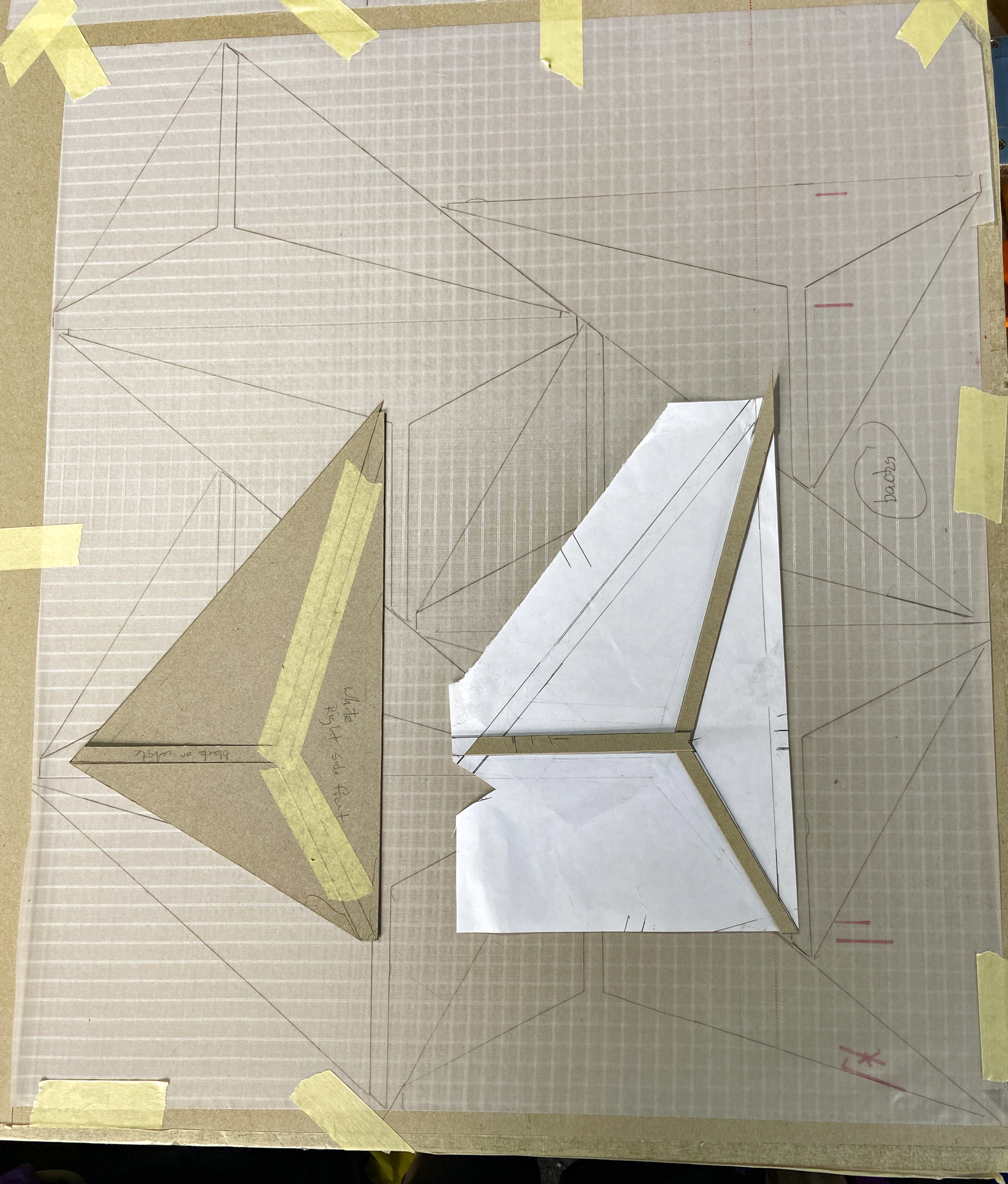

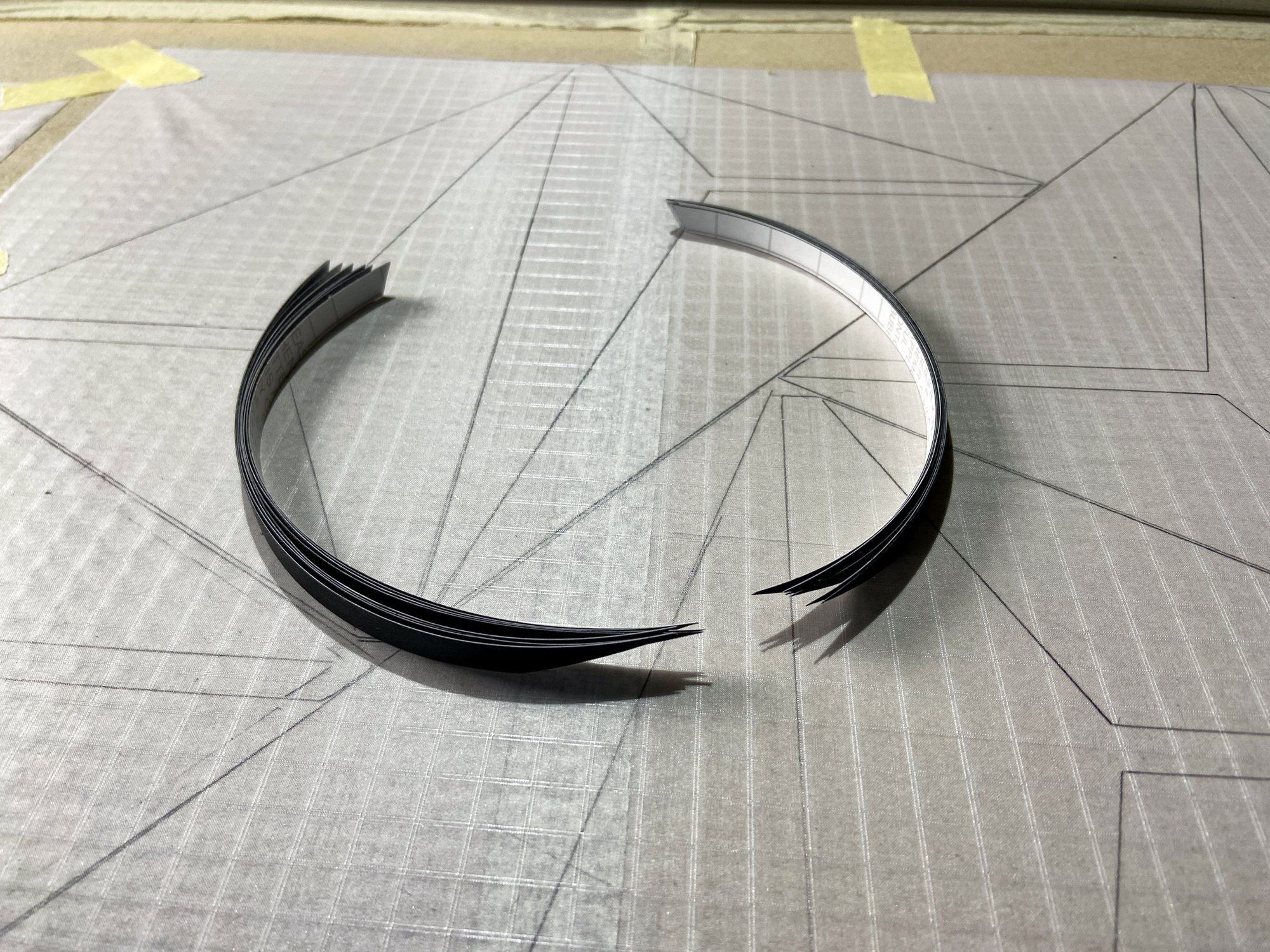

Templates were prepared for cutting the tape elements, 21st September 2023.
6

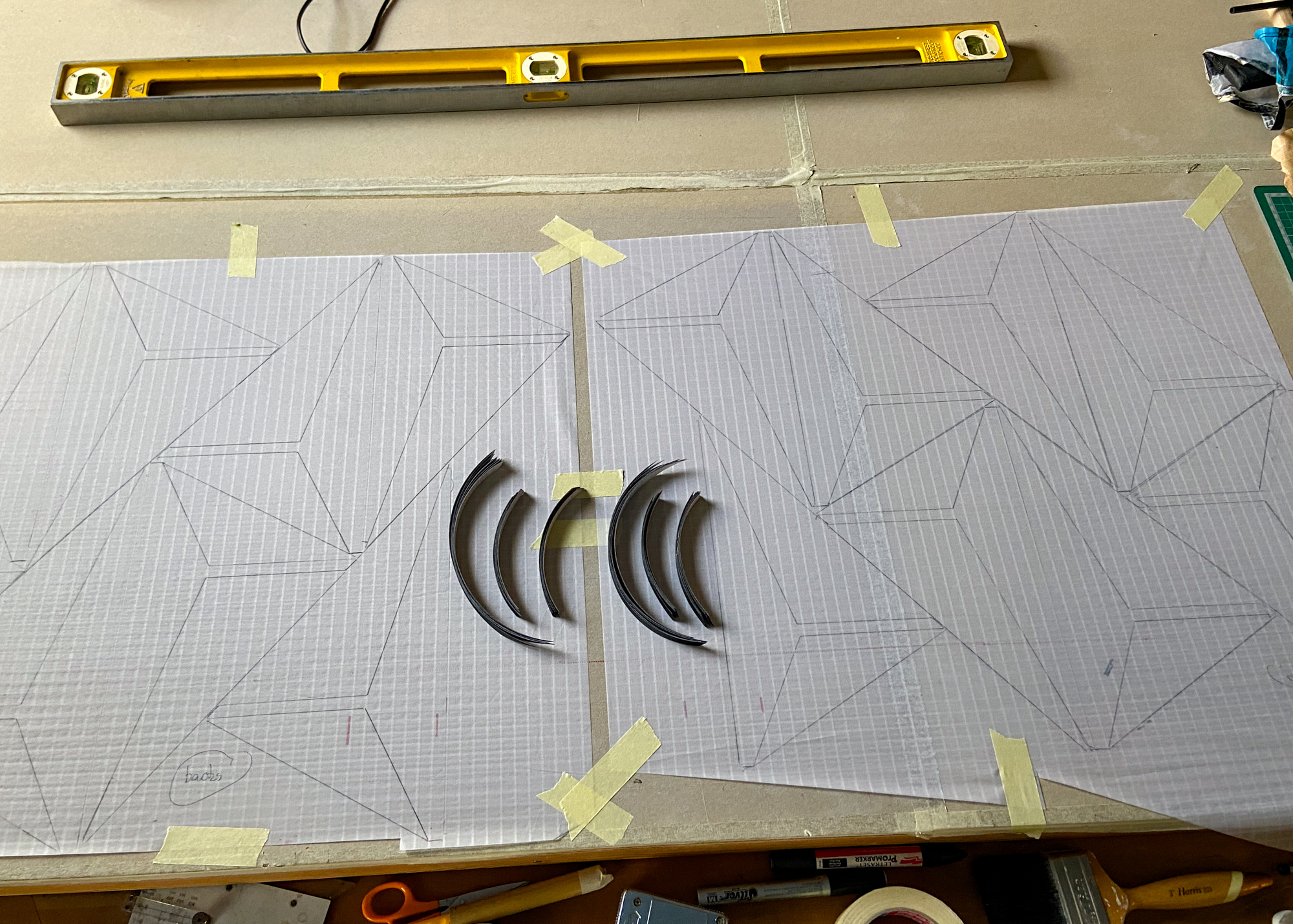

Left and right handed sets of tape elements were cut and the reversed ripstop was inverted and re-secured ready for the setting of reinforcing line and placing the tape elements.
5
6
6

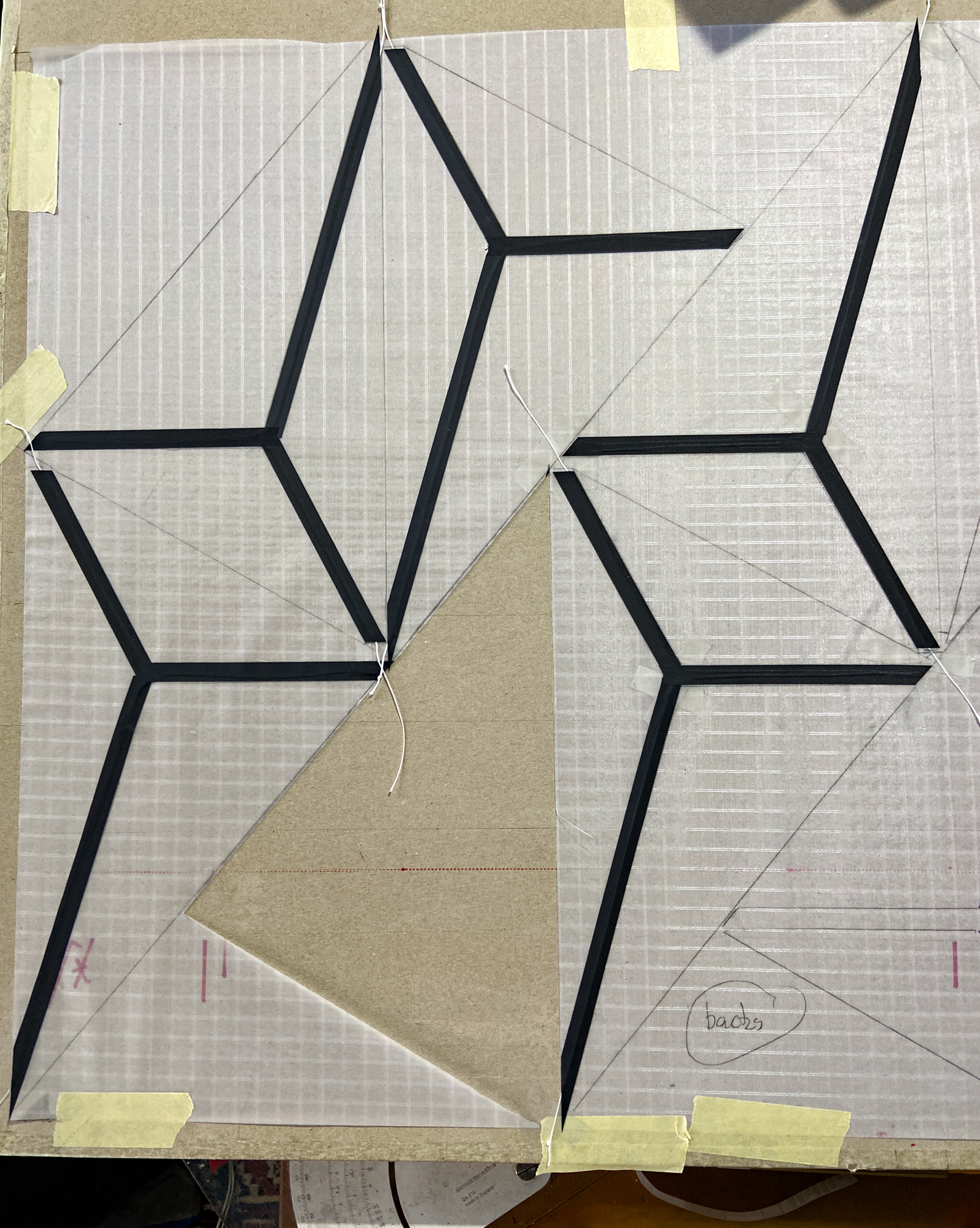

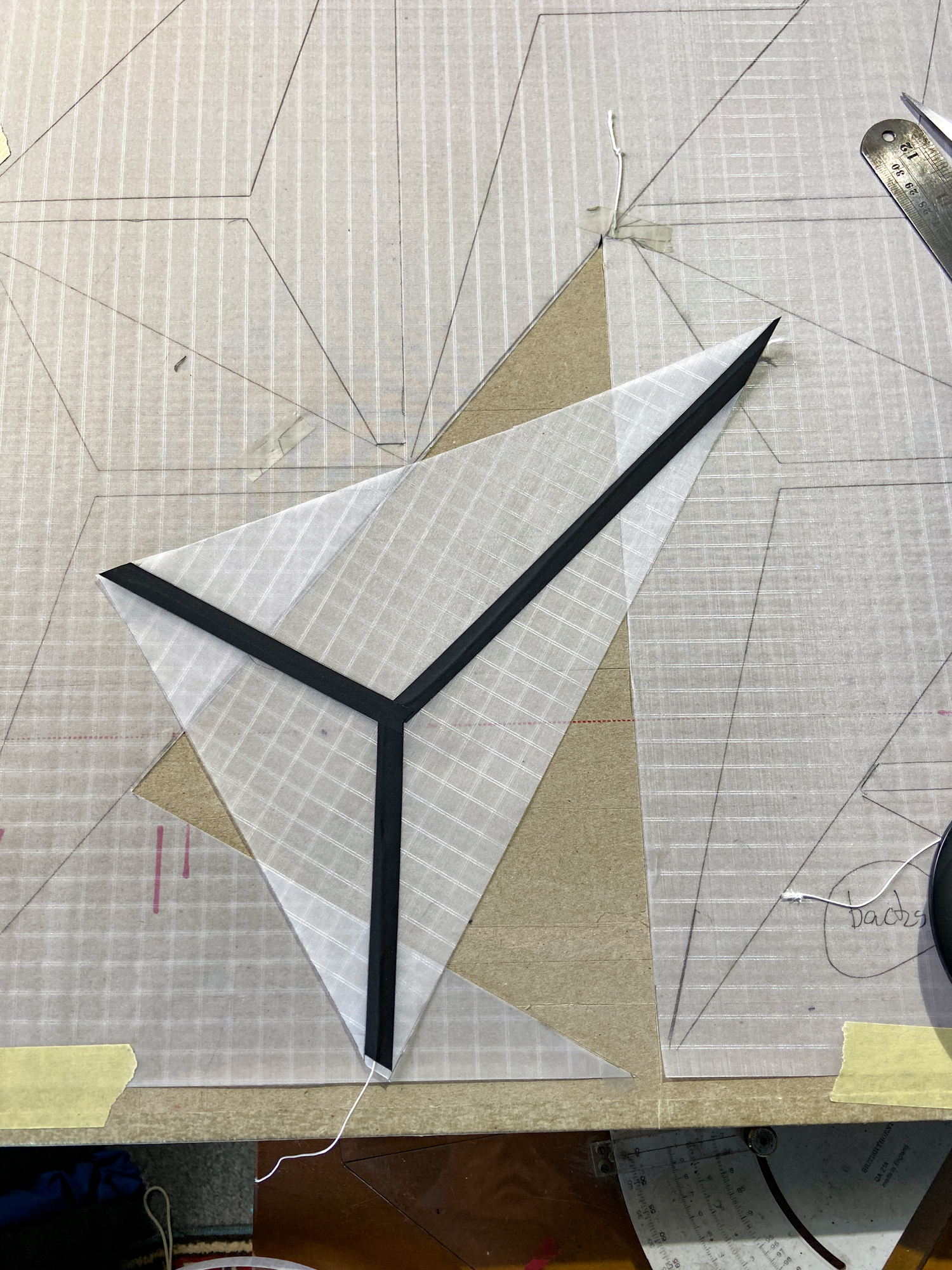

First set laid out ready for sewing.
6

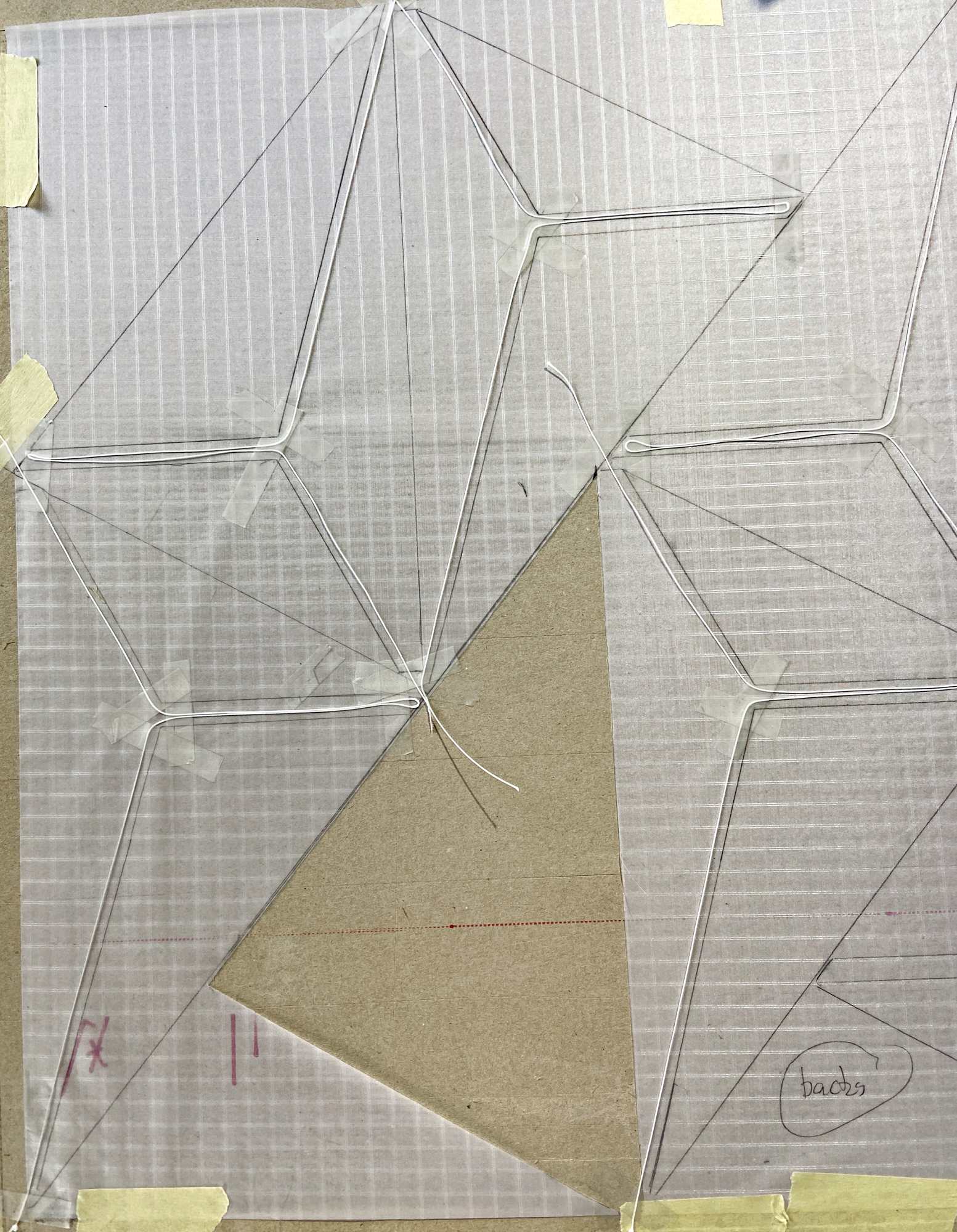

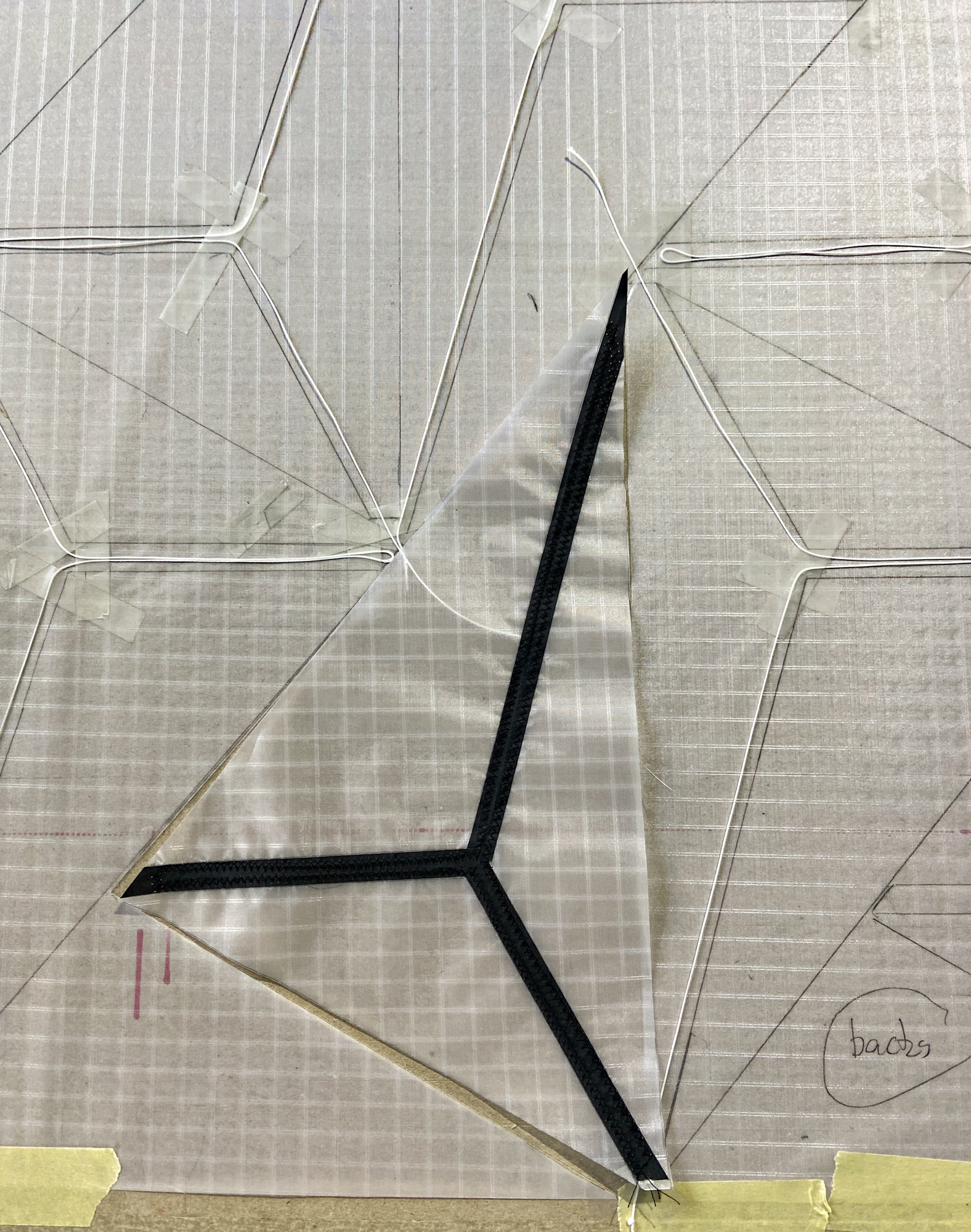

Sanity check before laying out further reinforcing lines and sewing.
5
6
5
6
5
5

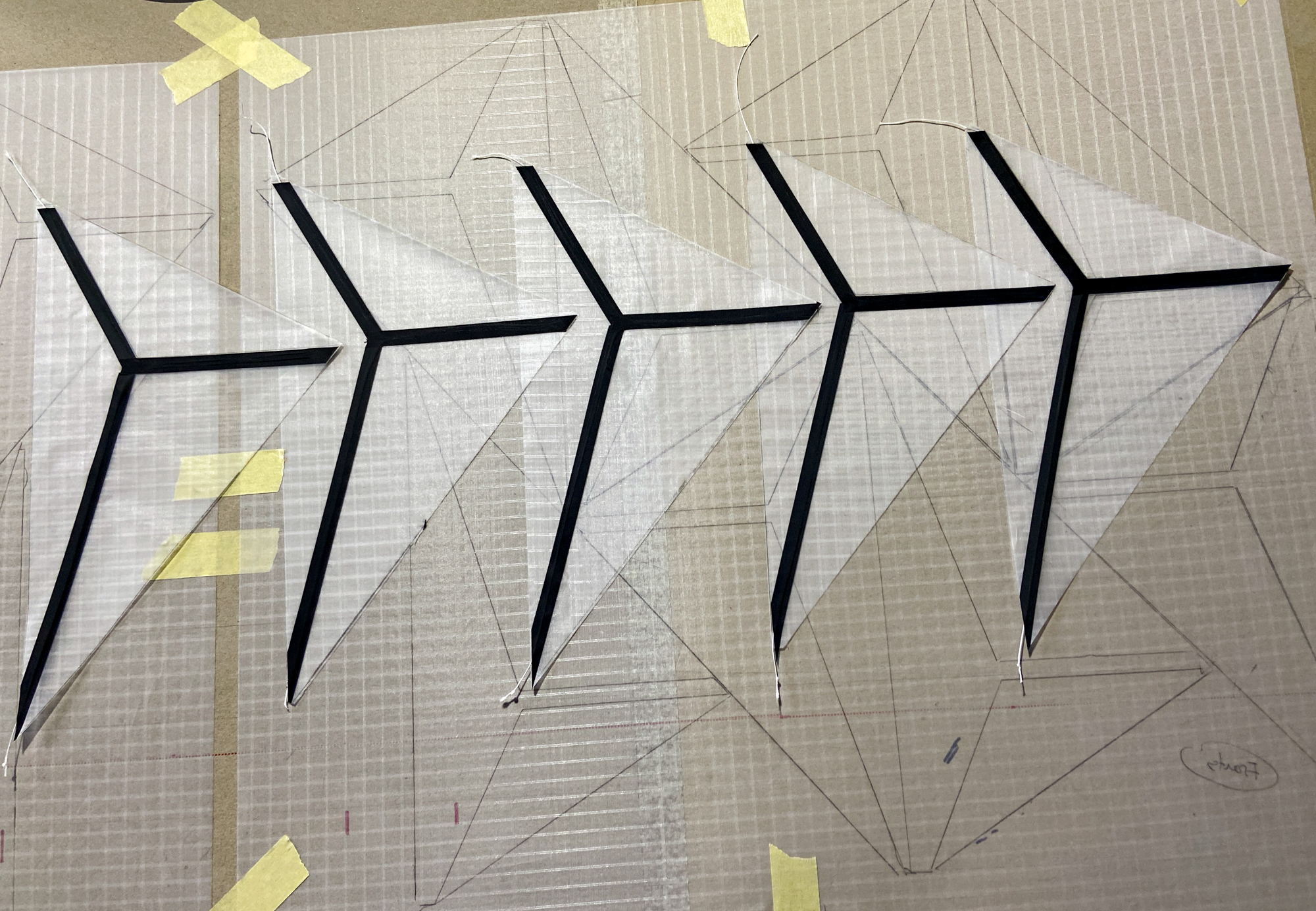

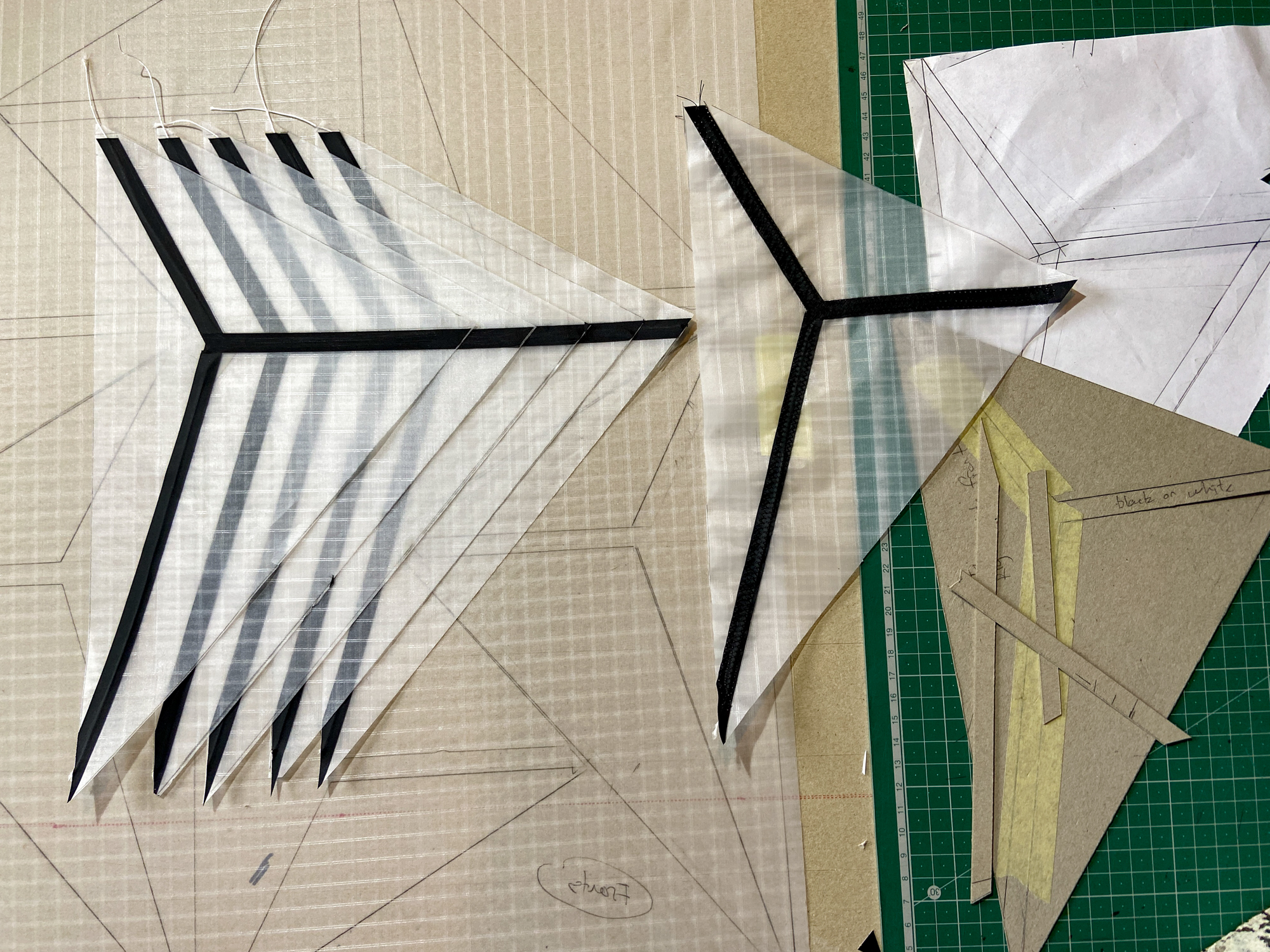

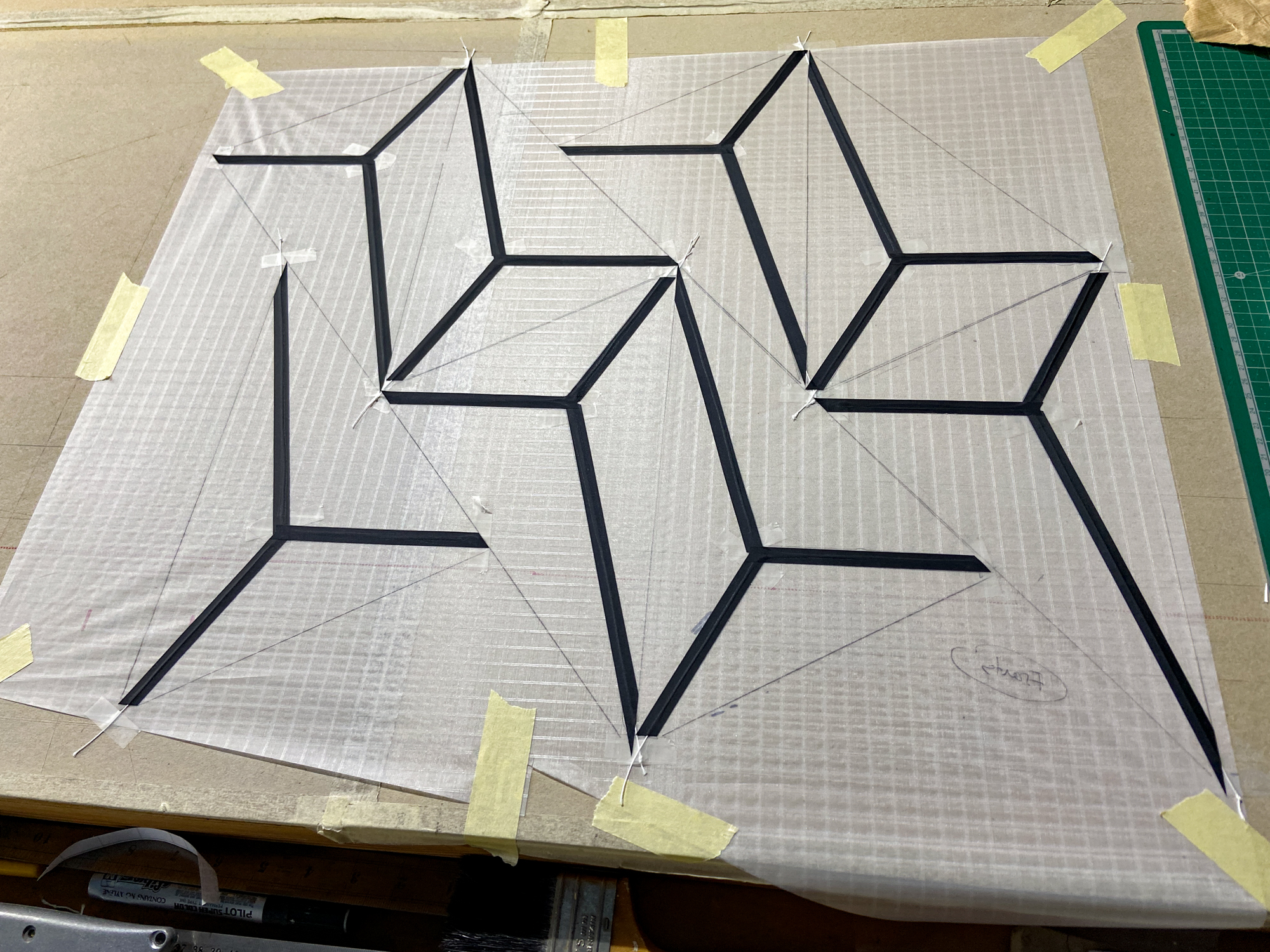

Set of eight now sewn, 26th September.
5

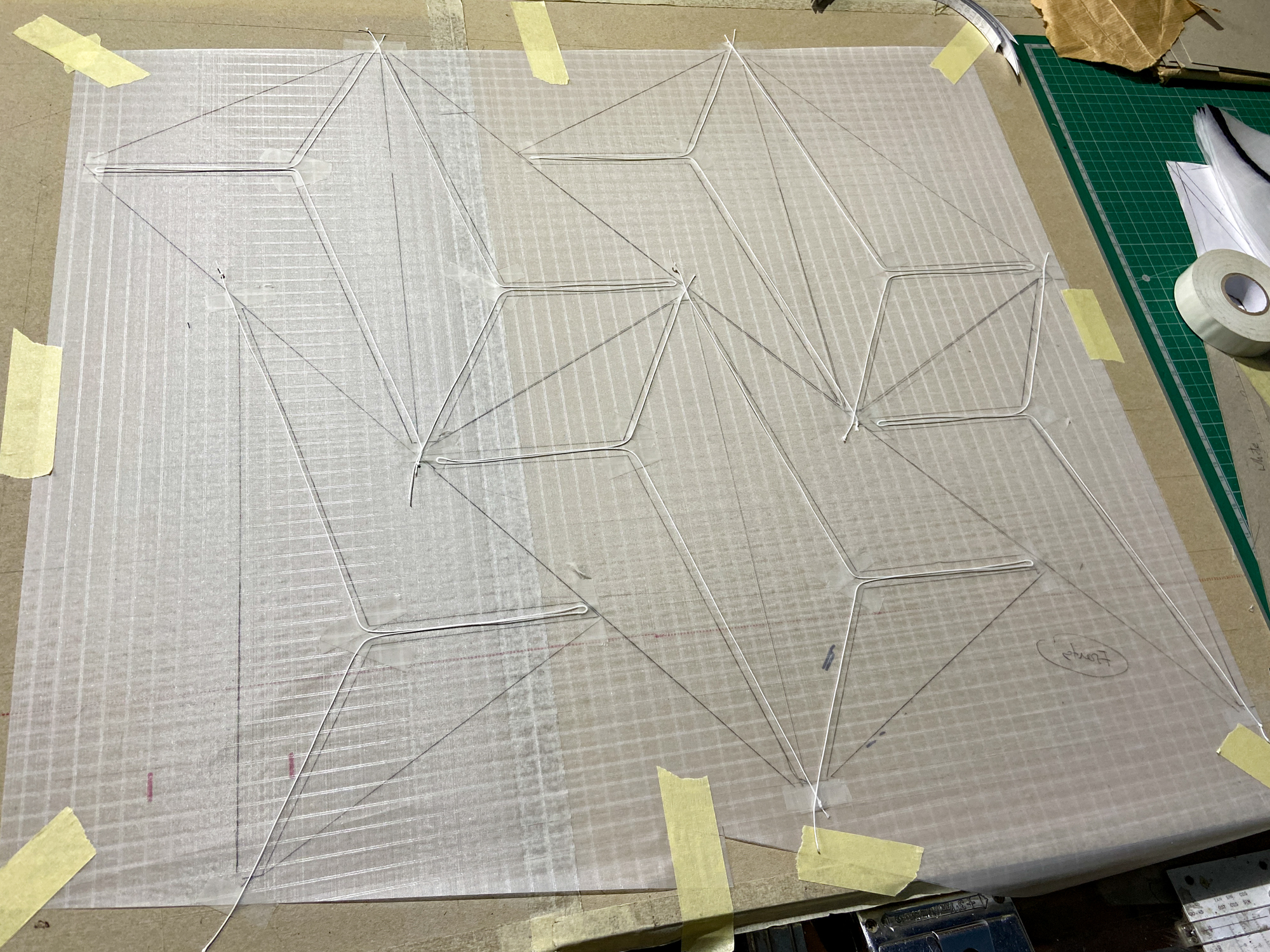

Core lines placed for final eight.
5
Final eight taped 27th September.
5

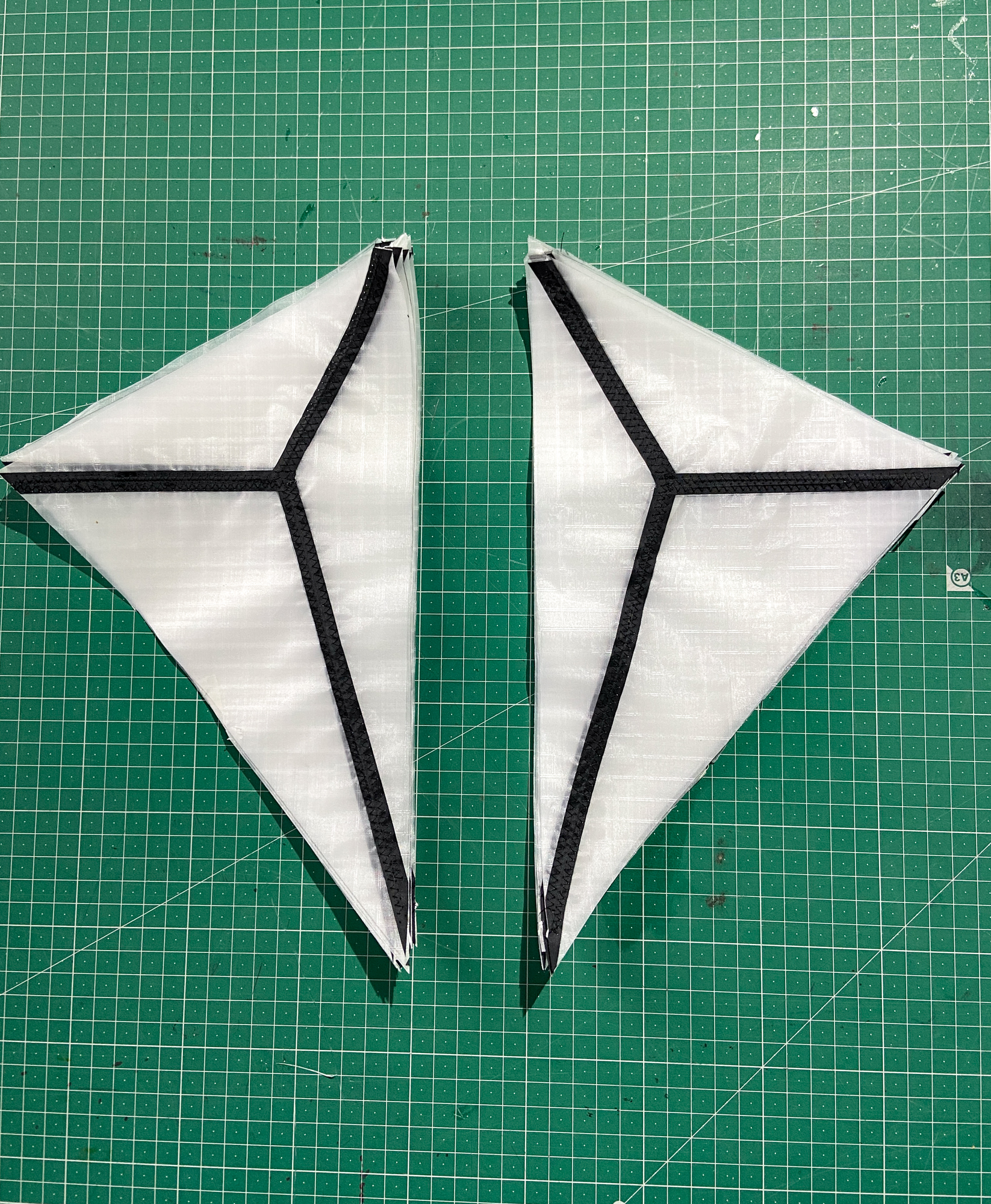

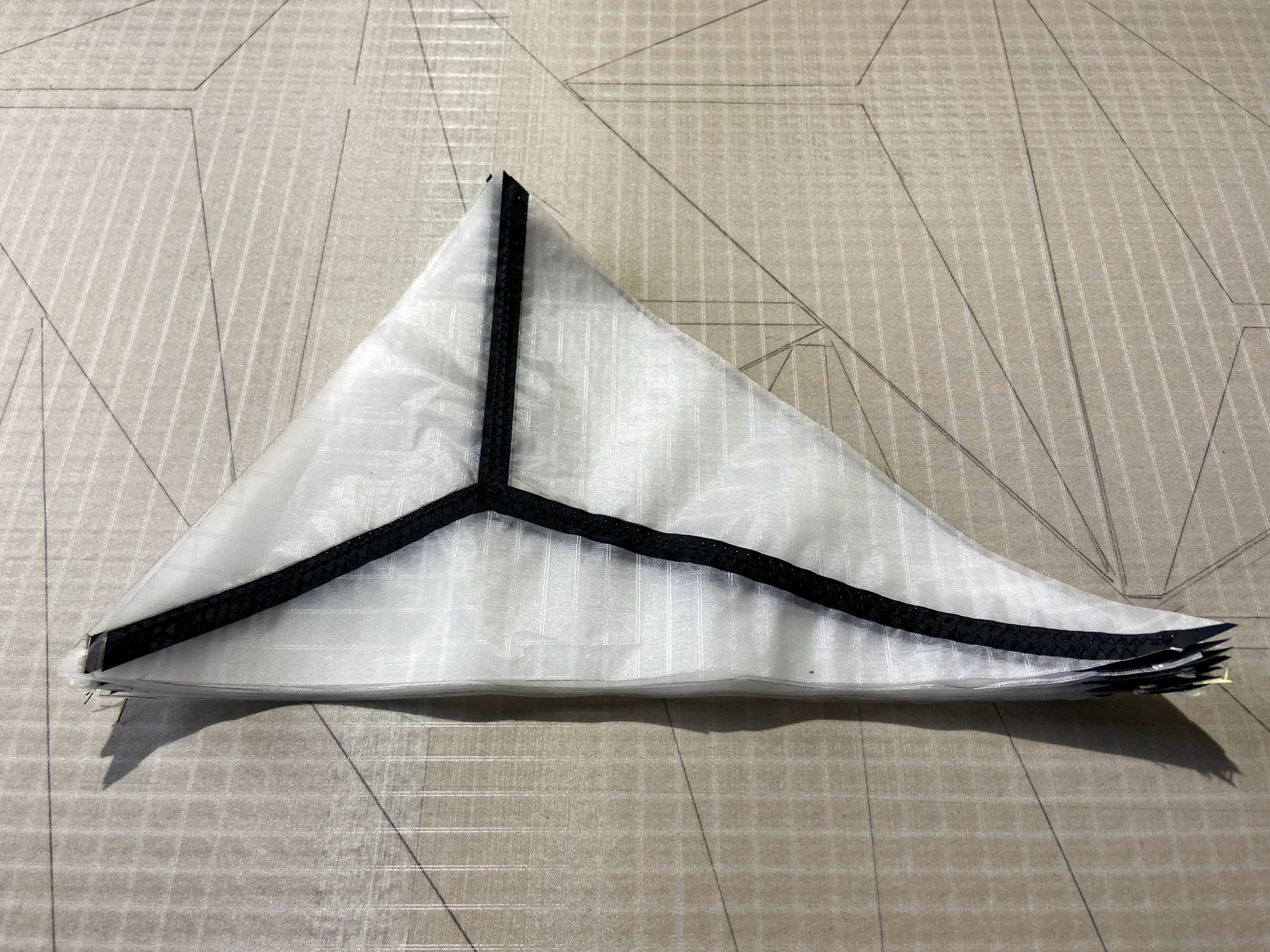

All sewn ready to apply to the sails.
5

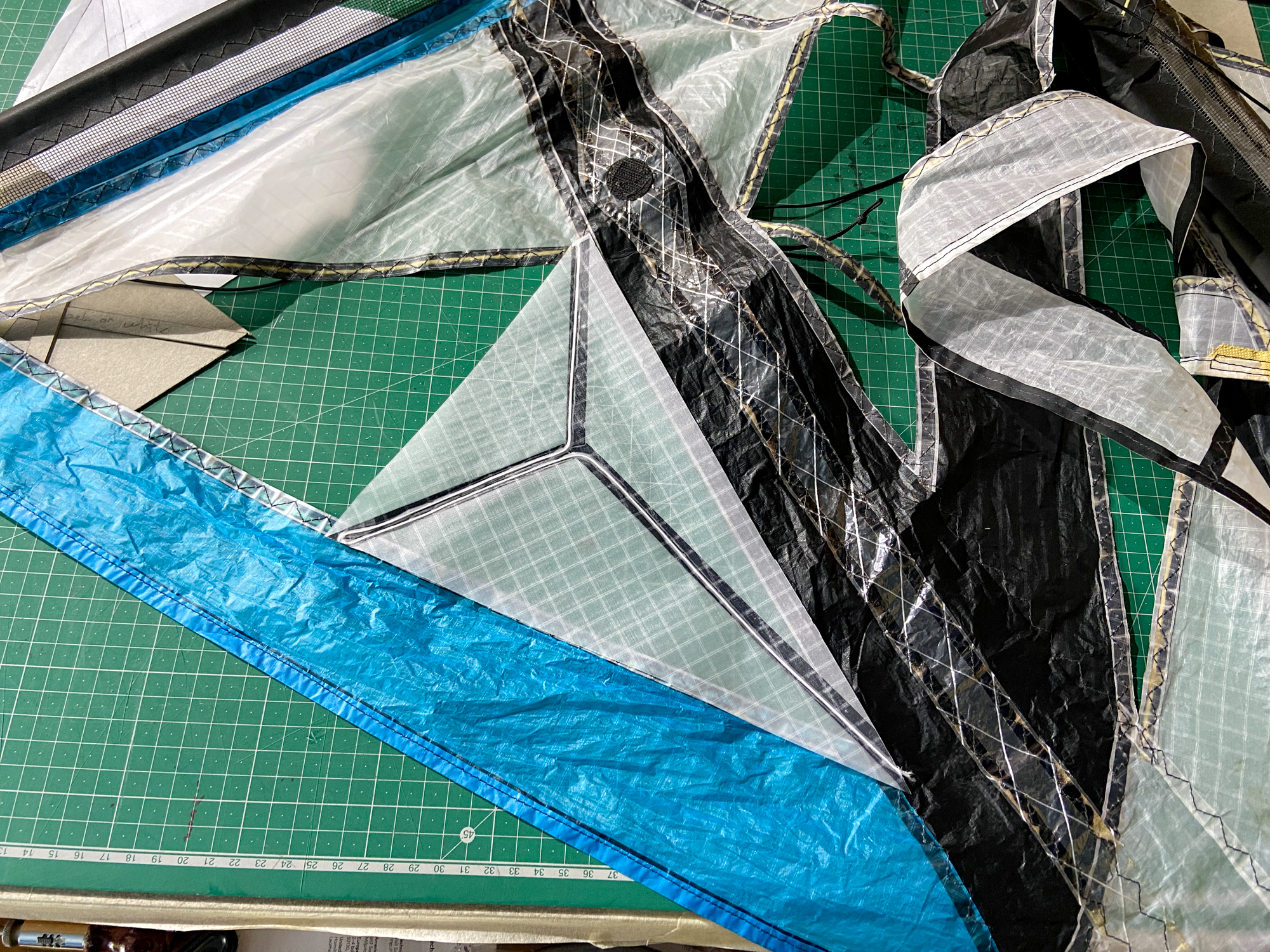

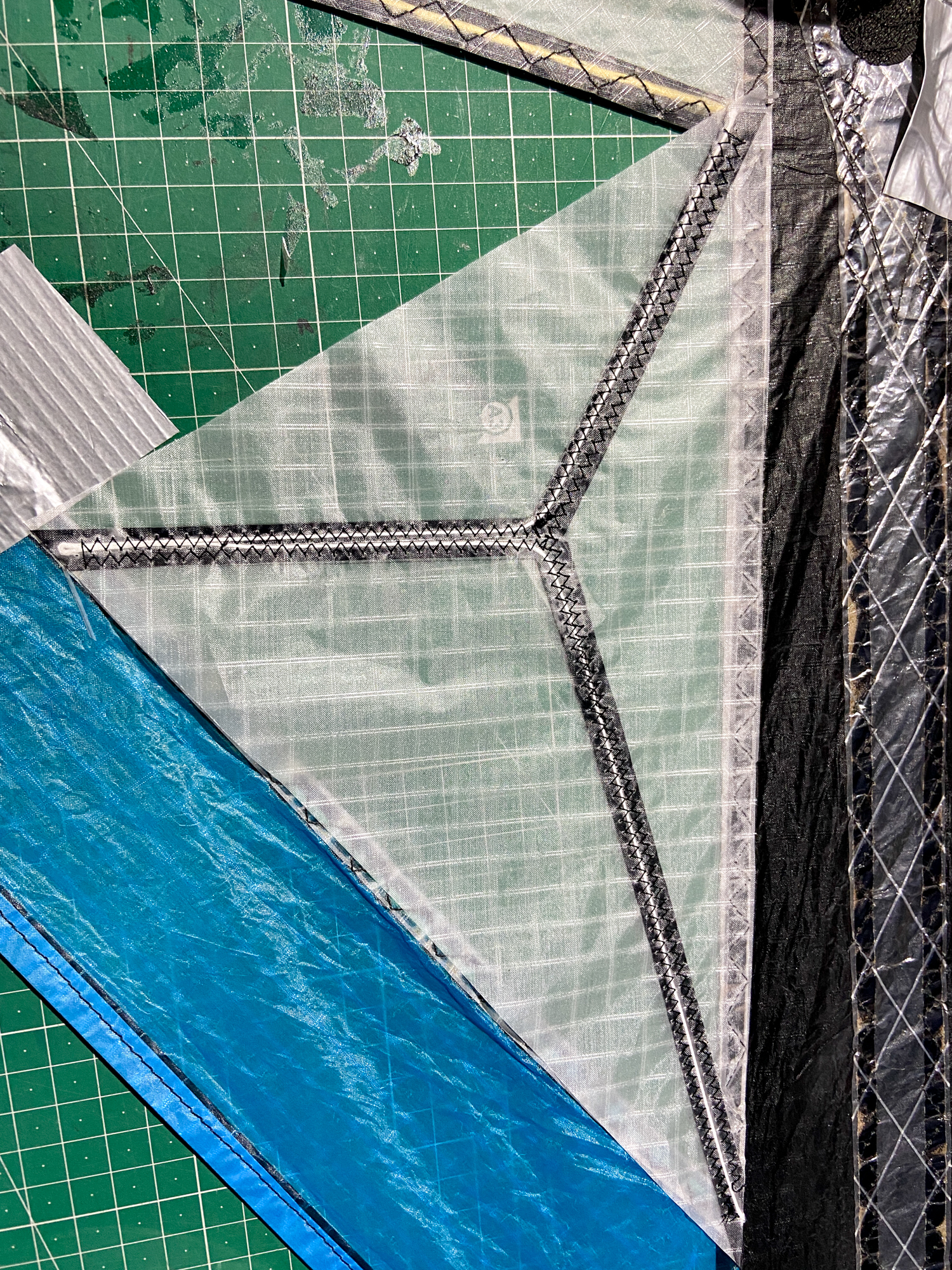

First element lined up ready for adhesive film application prior to sewing.
5
5
5
5
5
5

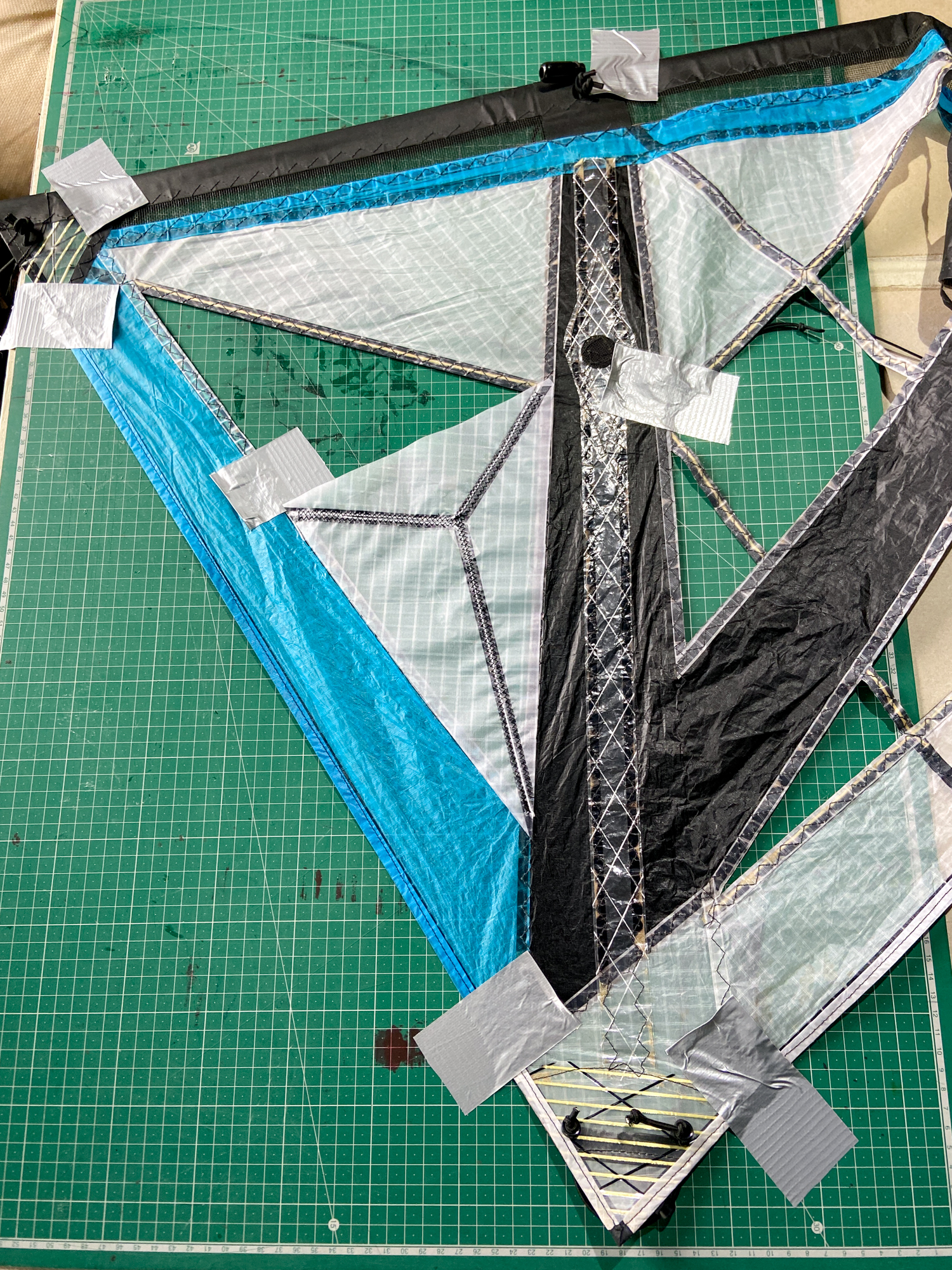

First four sails tacked with adhesive film ready for sewing, 28th September.
5
5
5

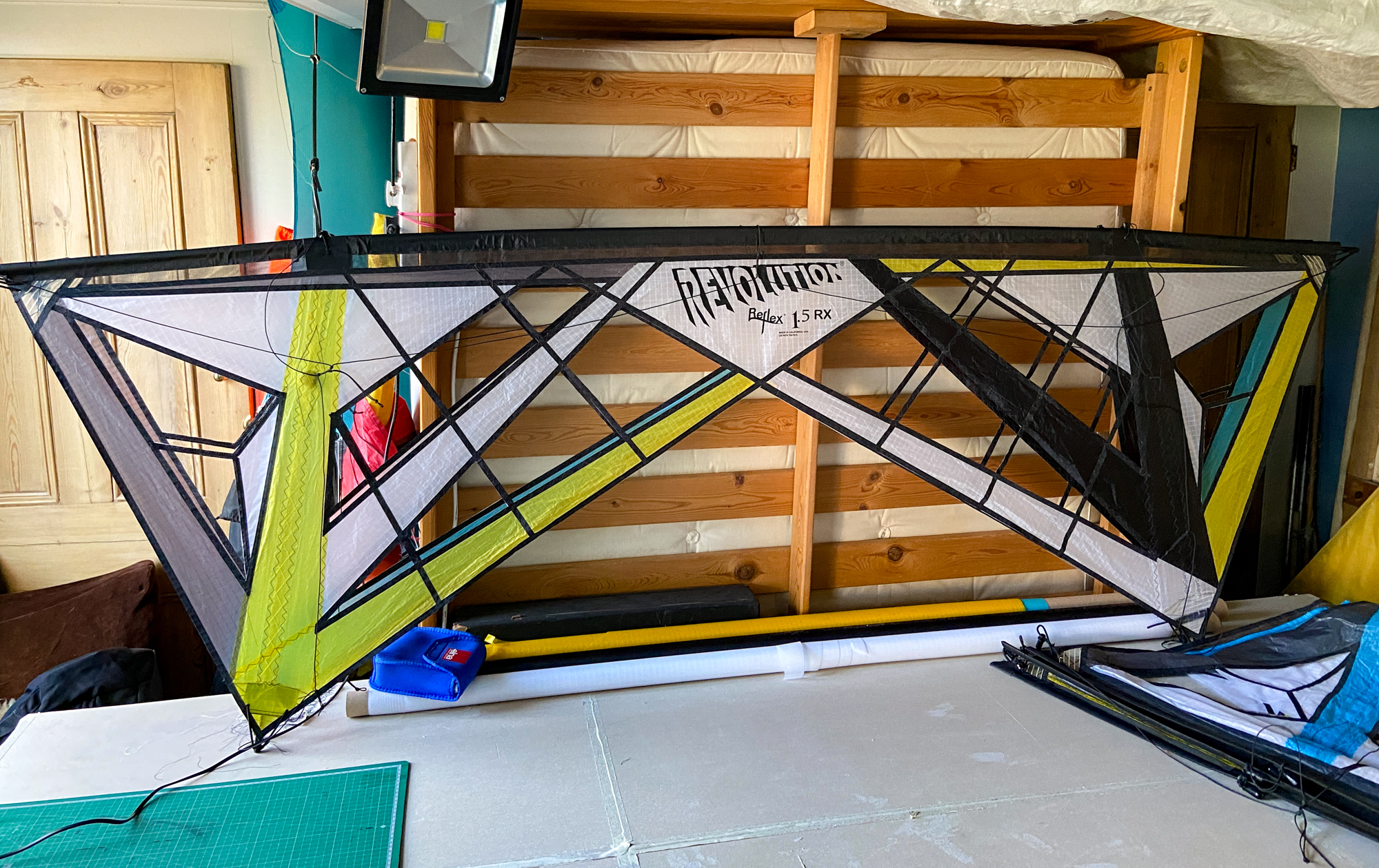

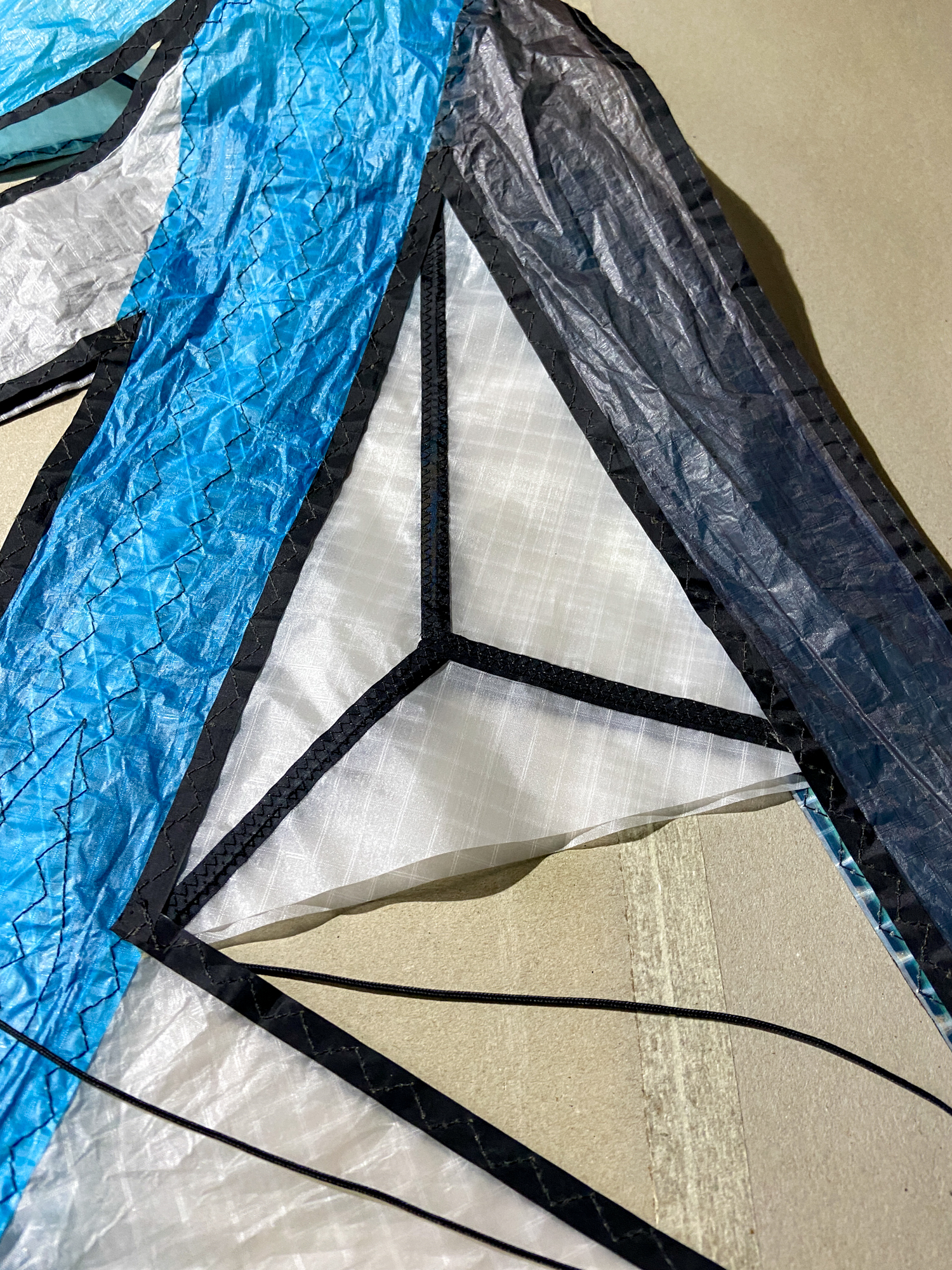

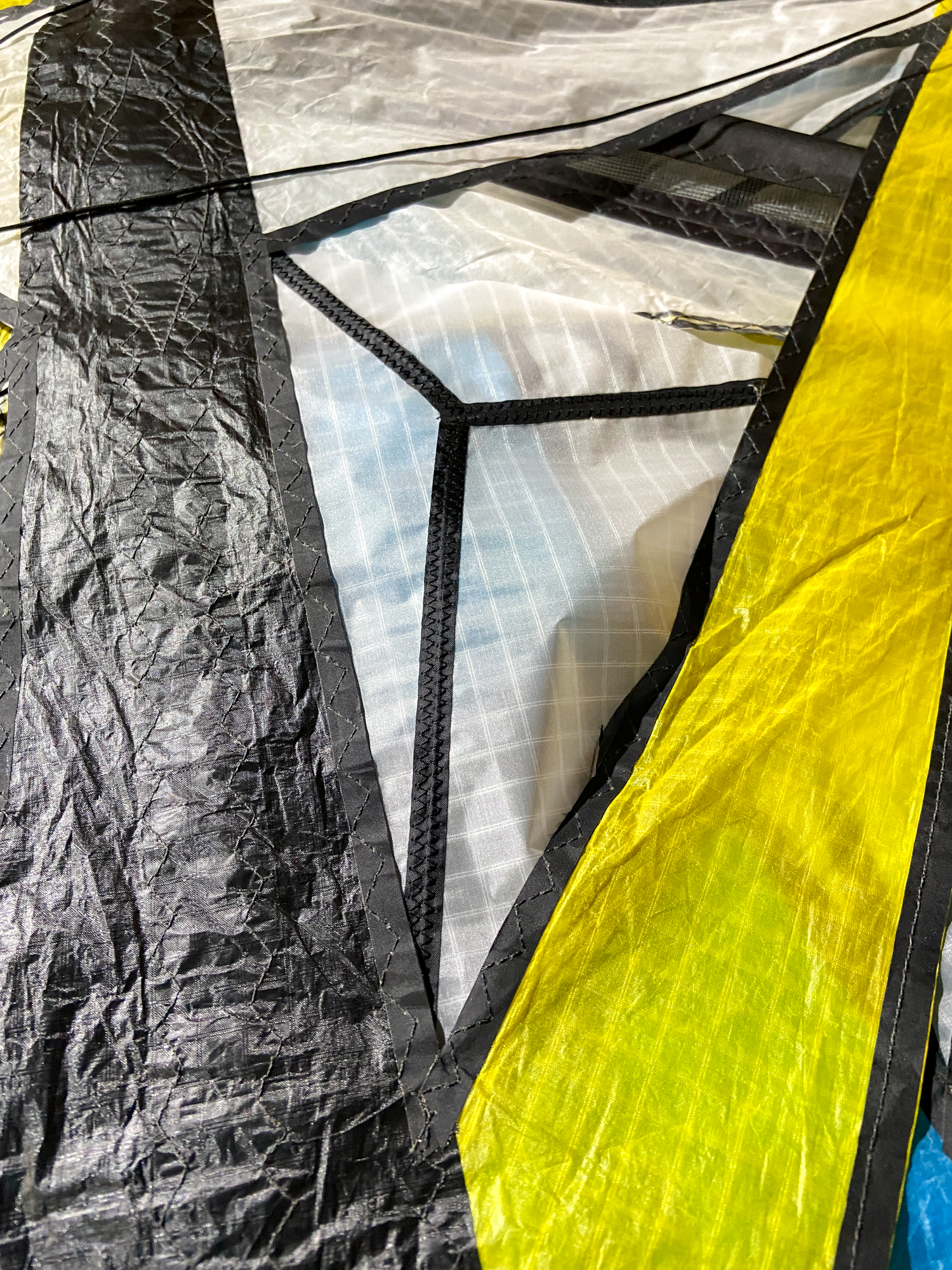

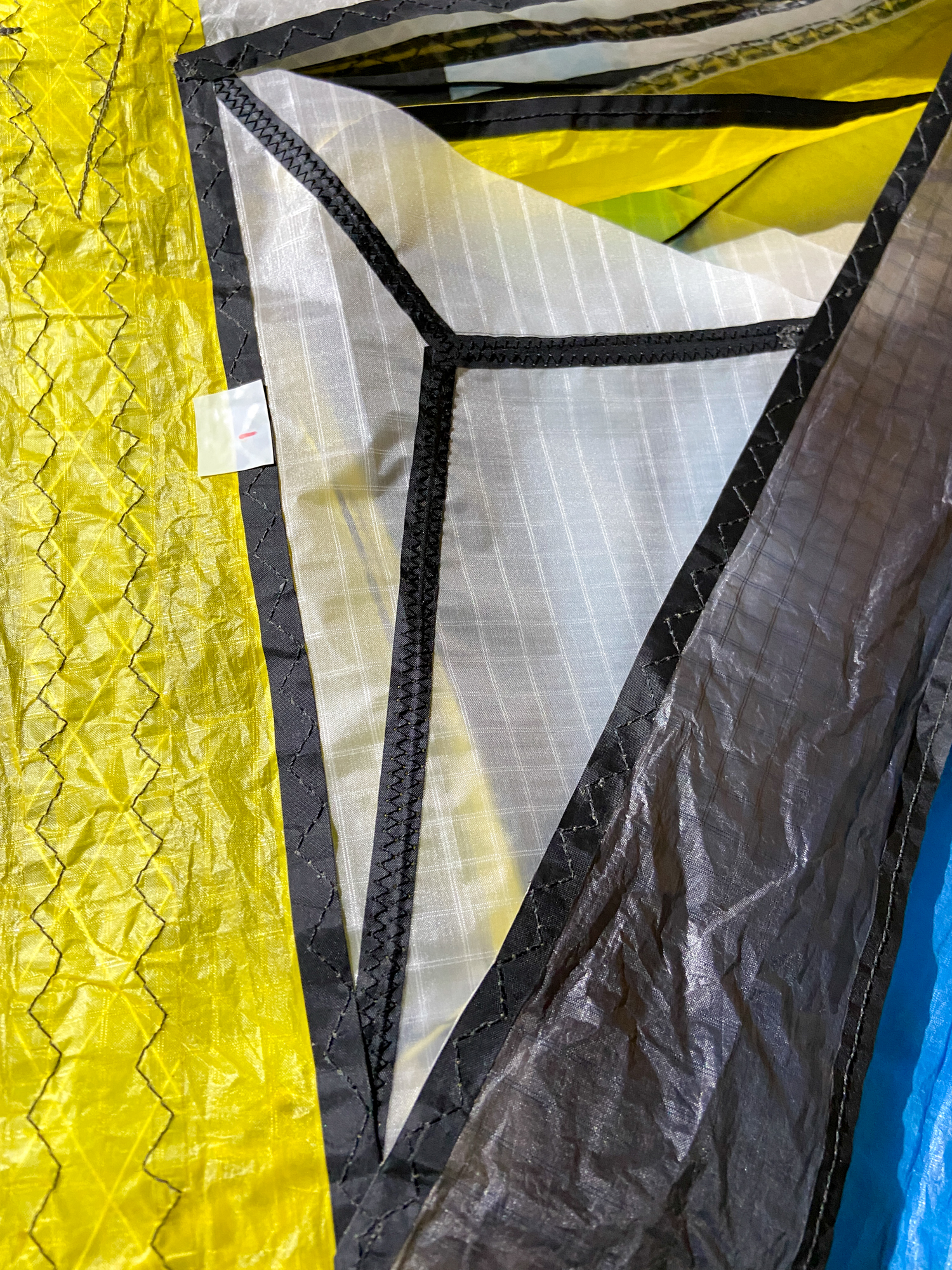

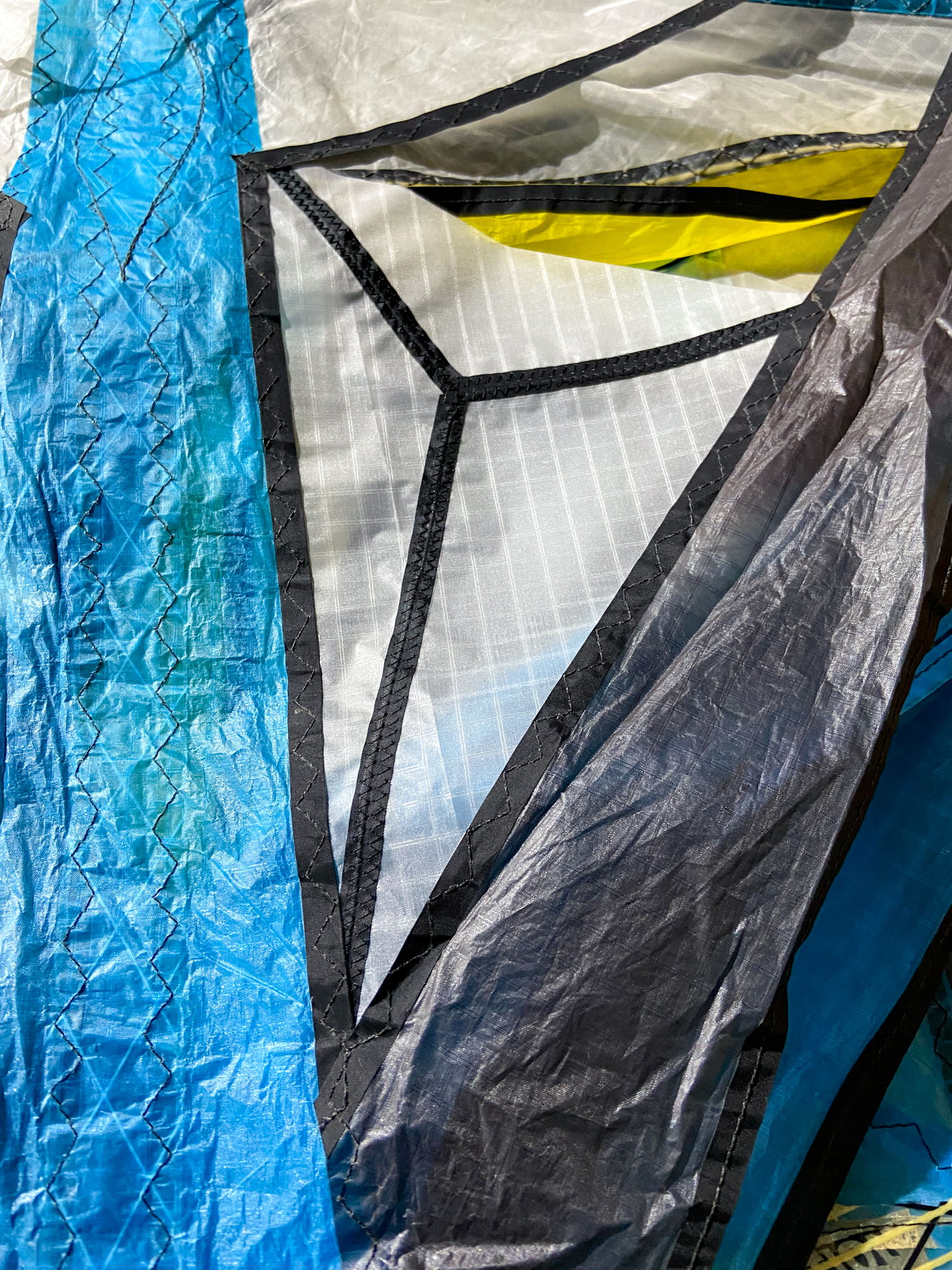

Four sails completed 29th September.
5

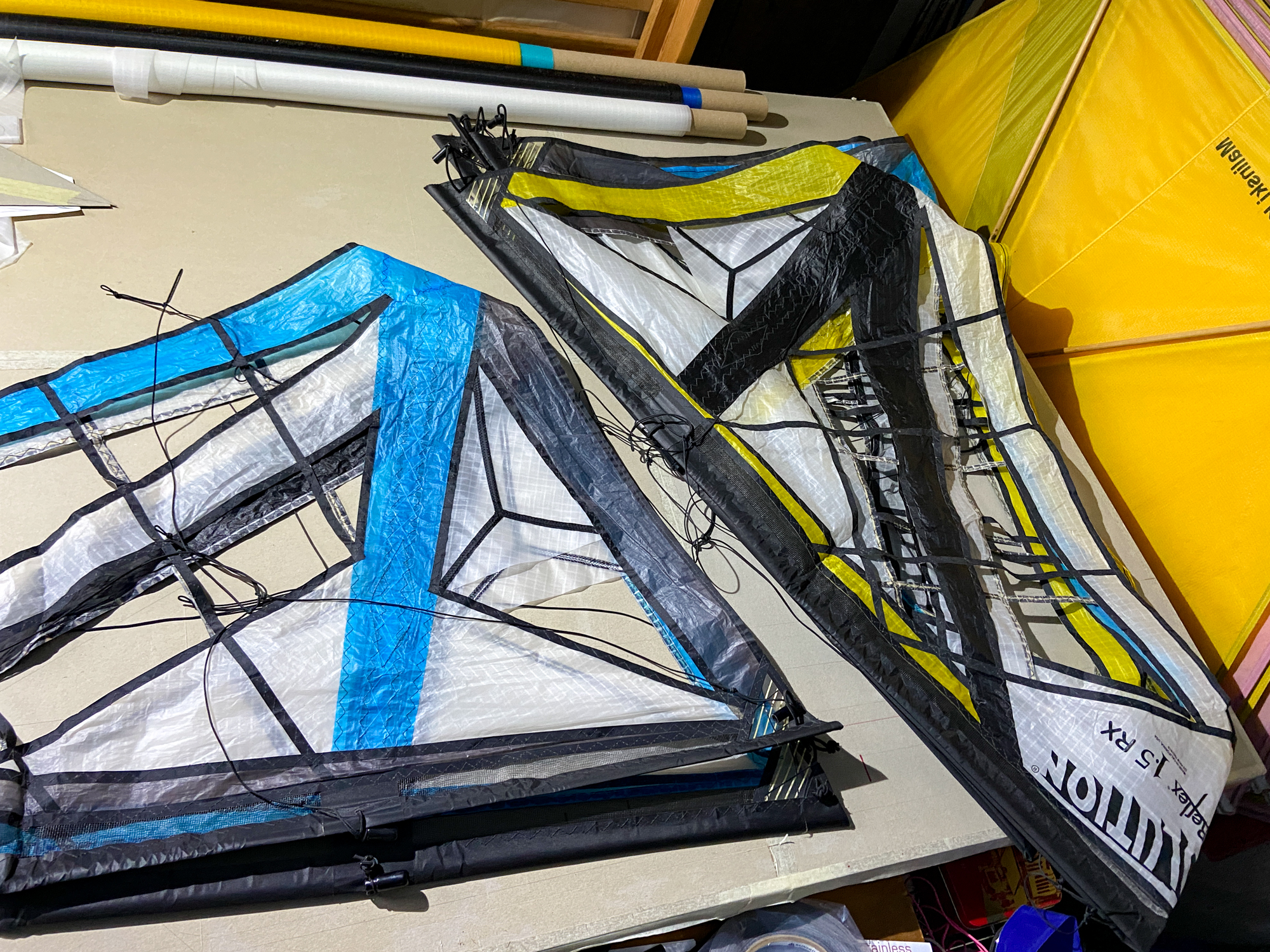

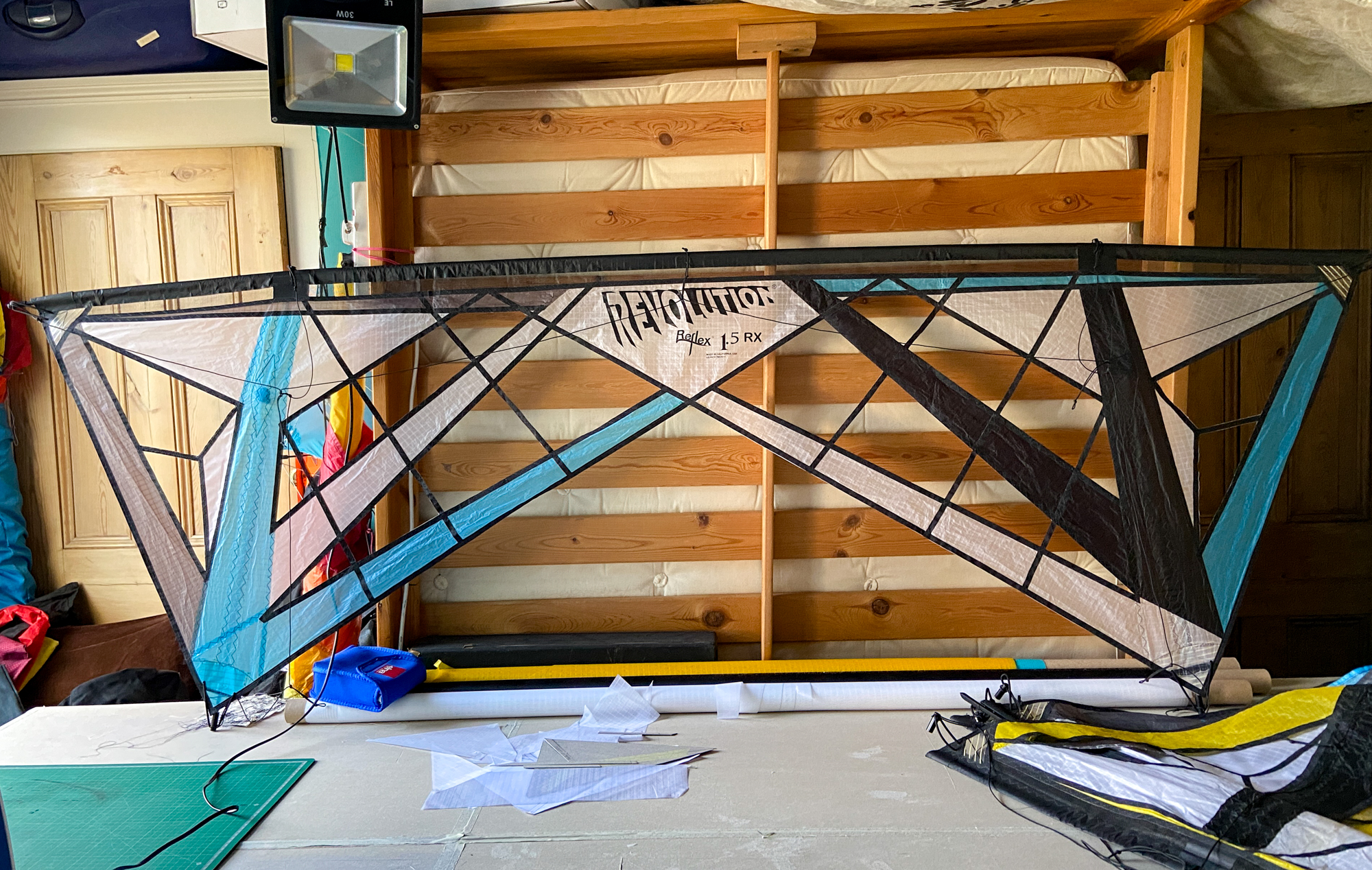

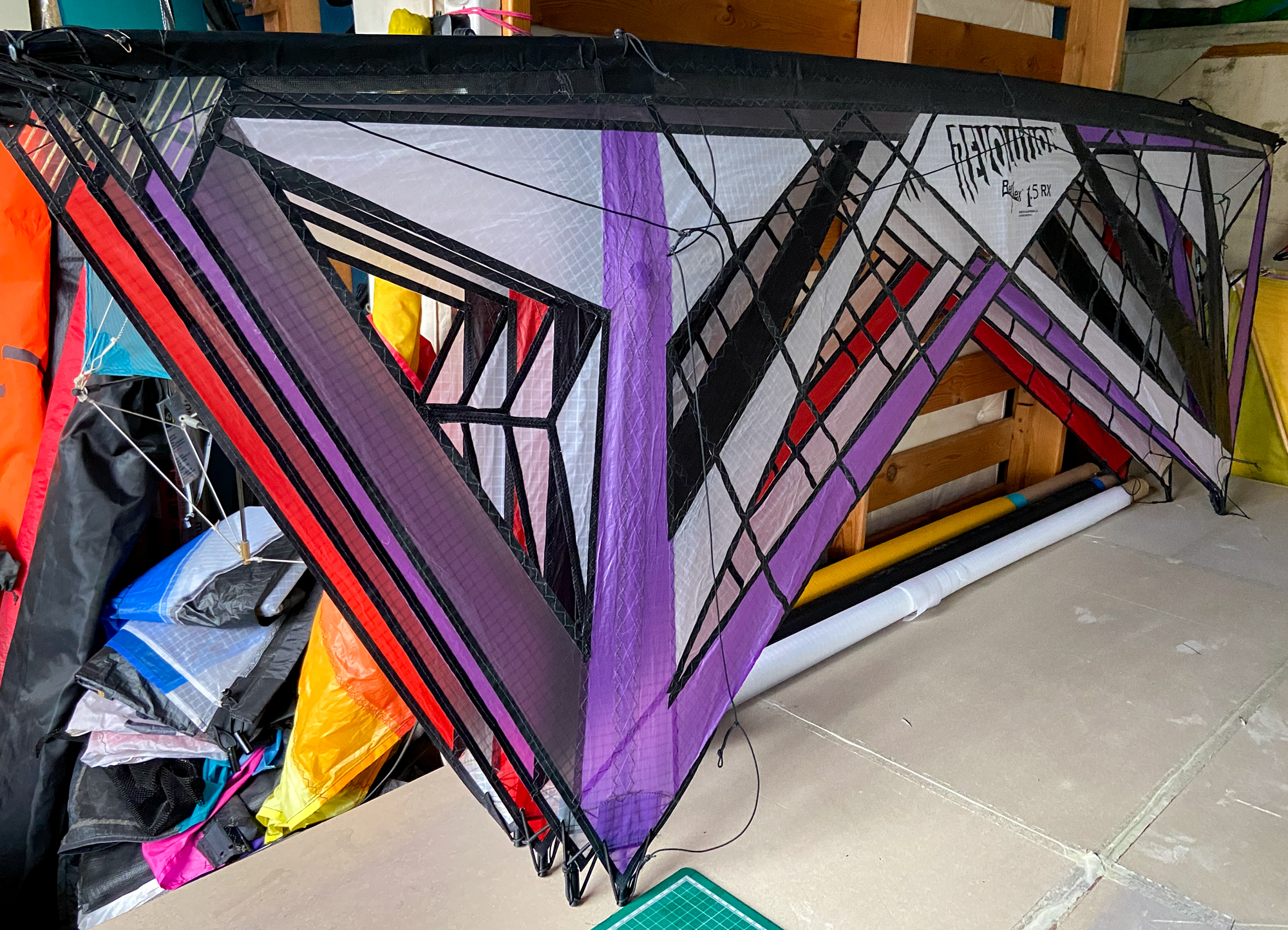

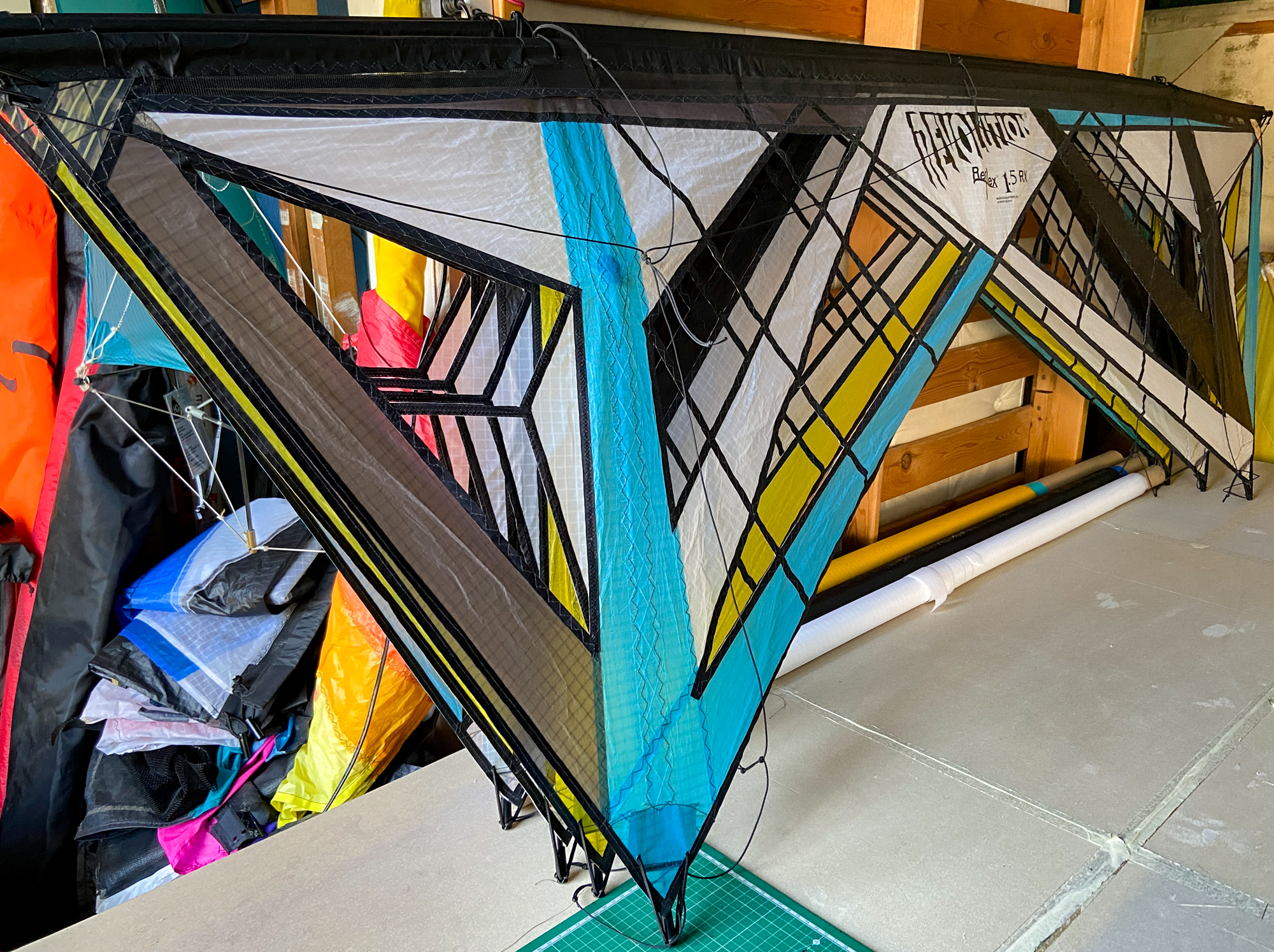

Remaining four sails completed 1st October.
5

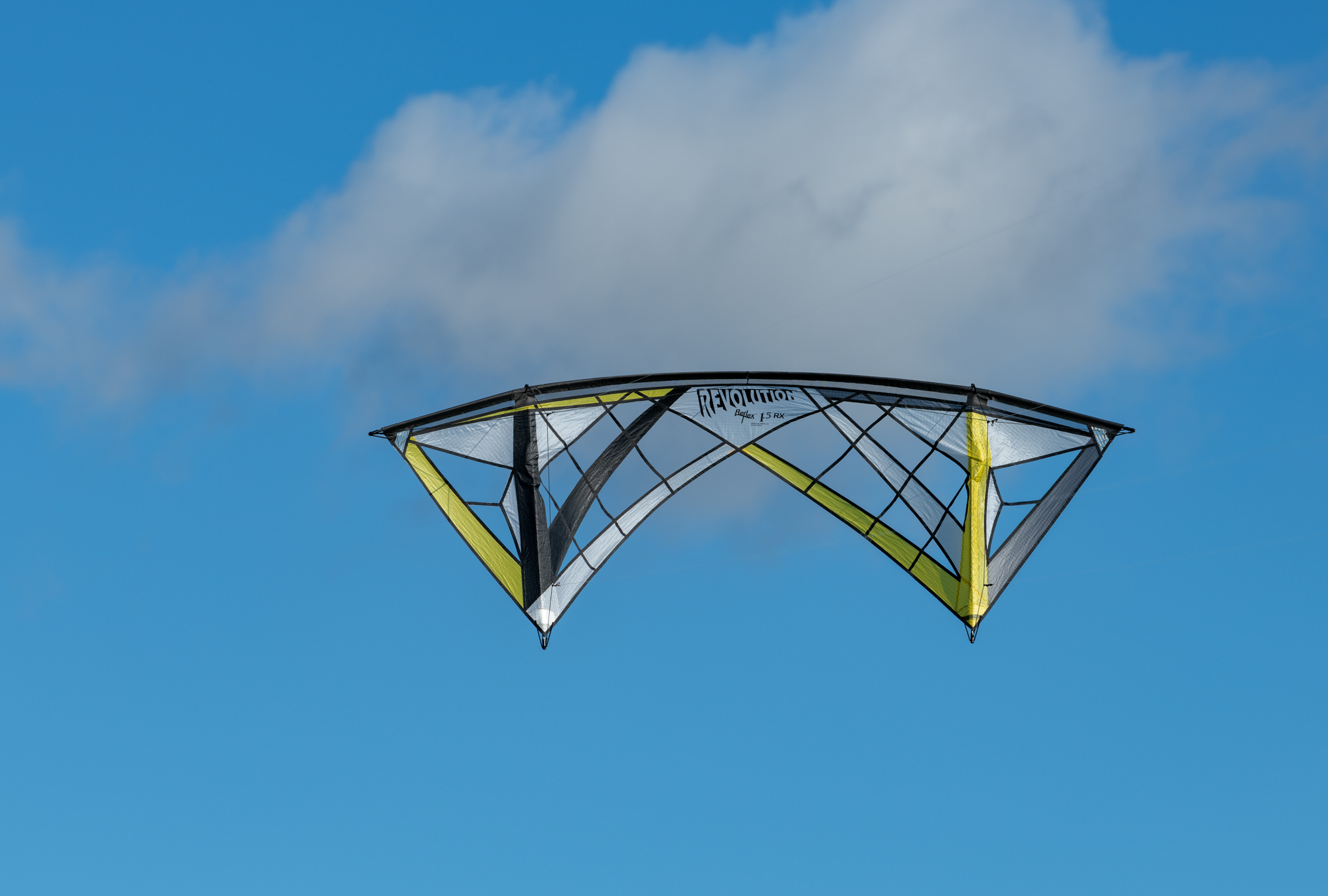

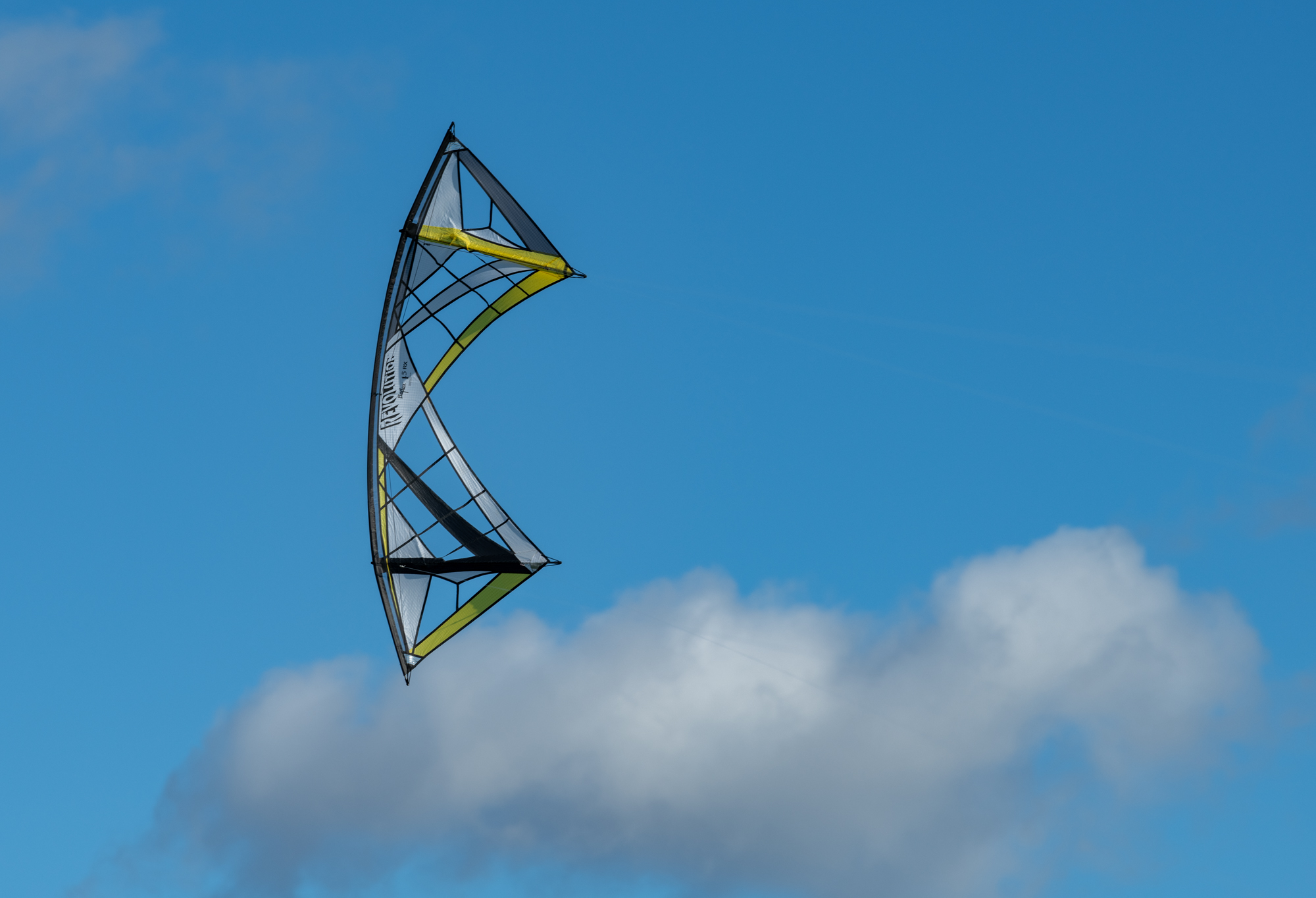

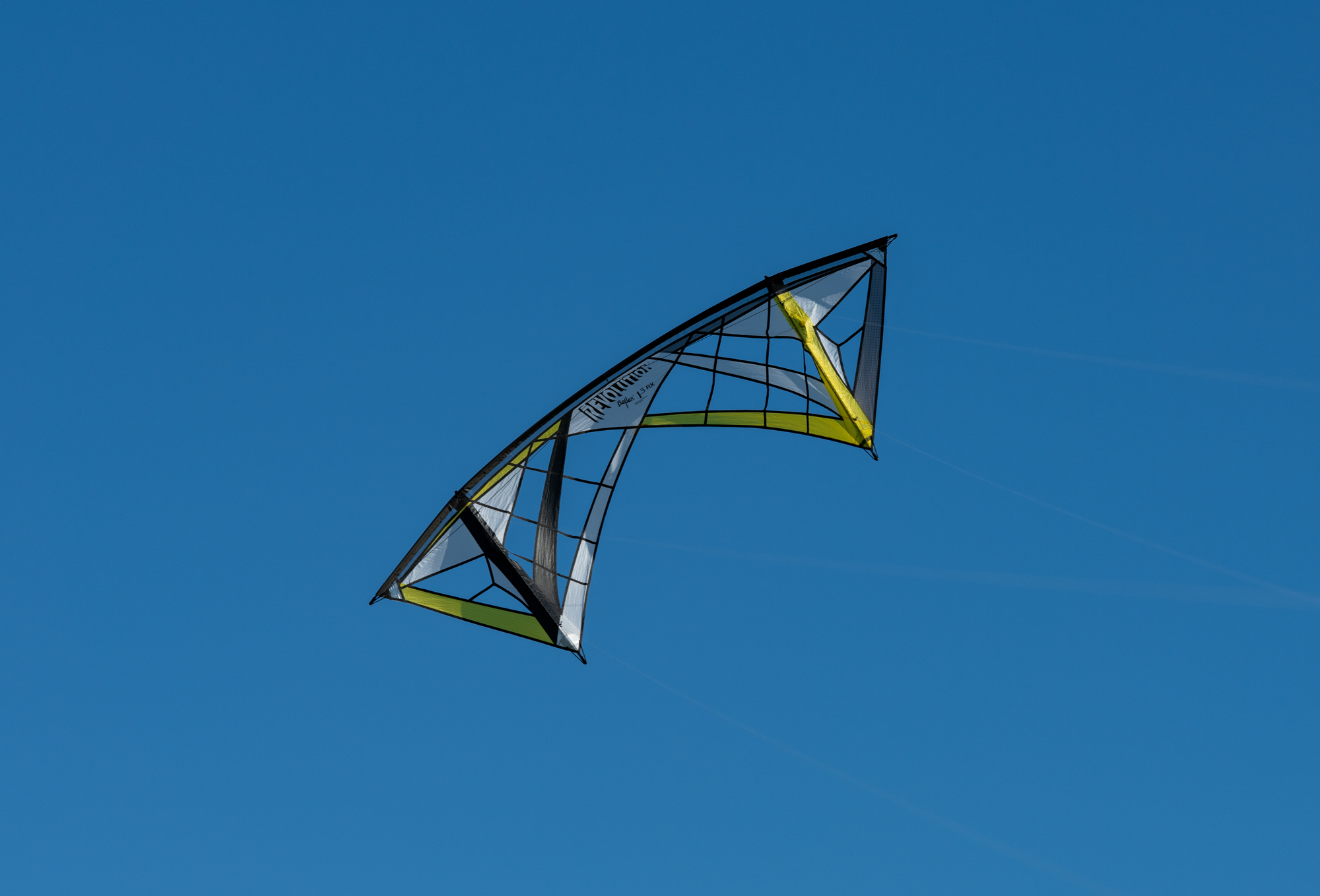

Flight test yellow right, black left. Blackheath 5th November 2023.
5
5
5
5

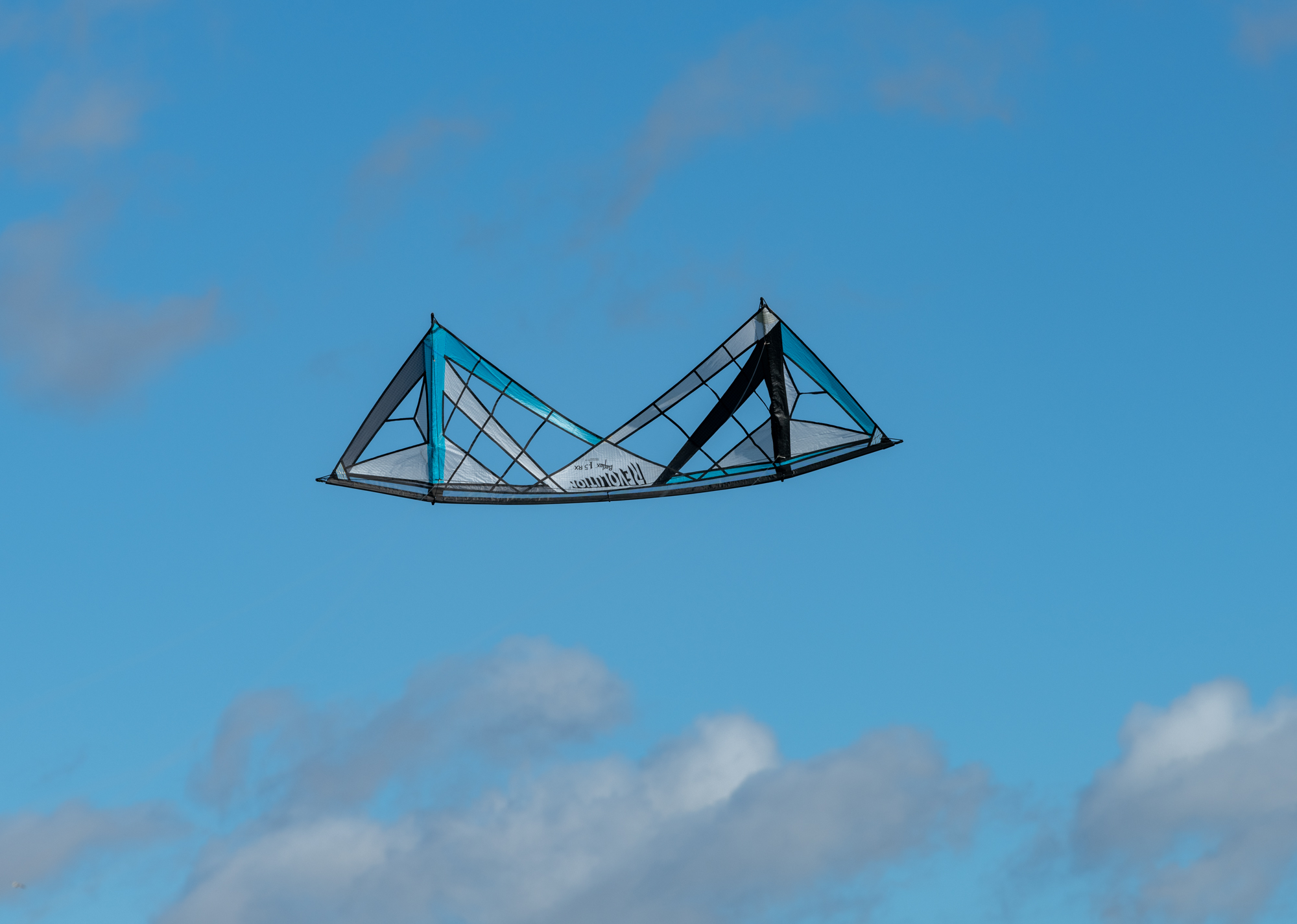

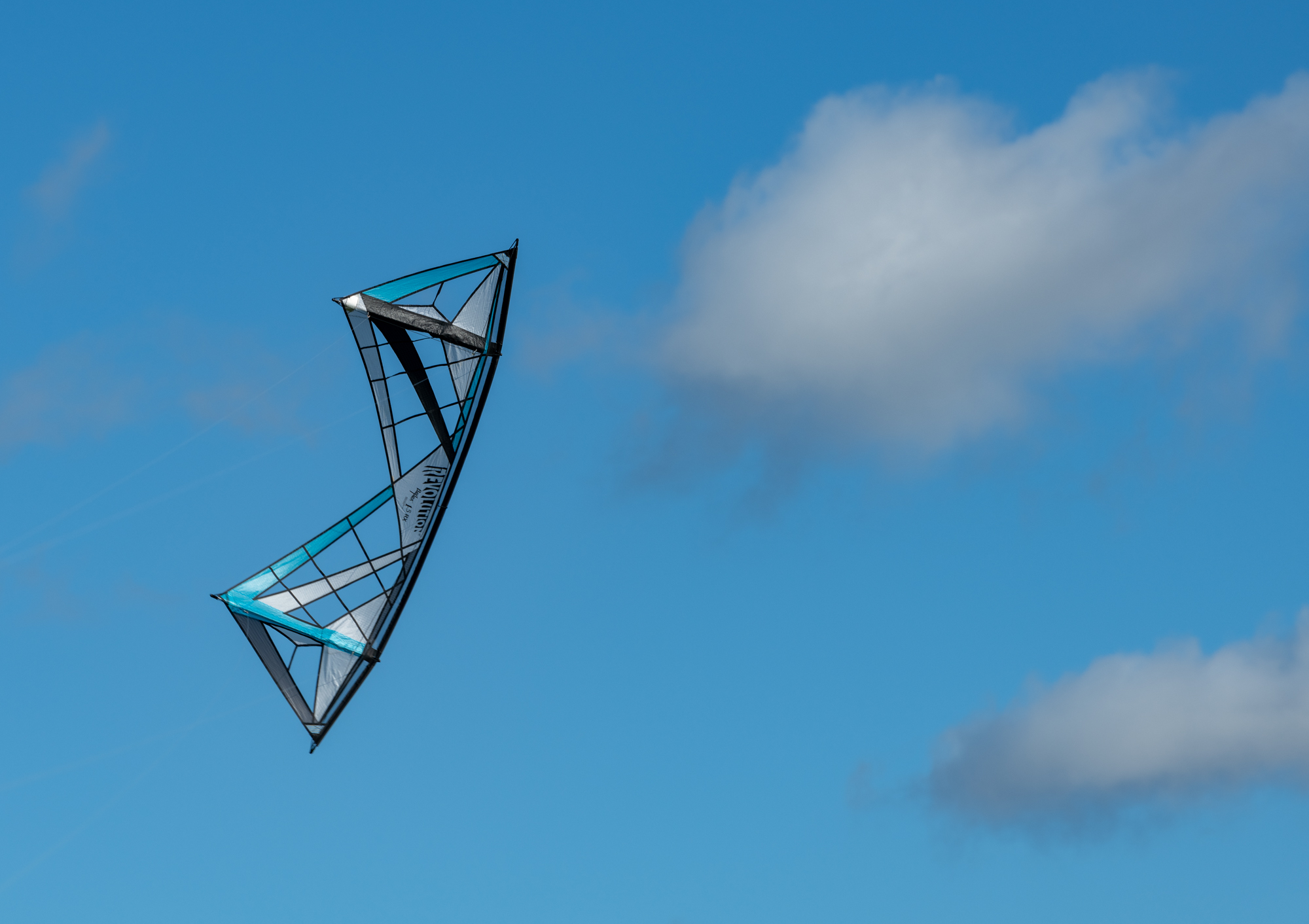

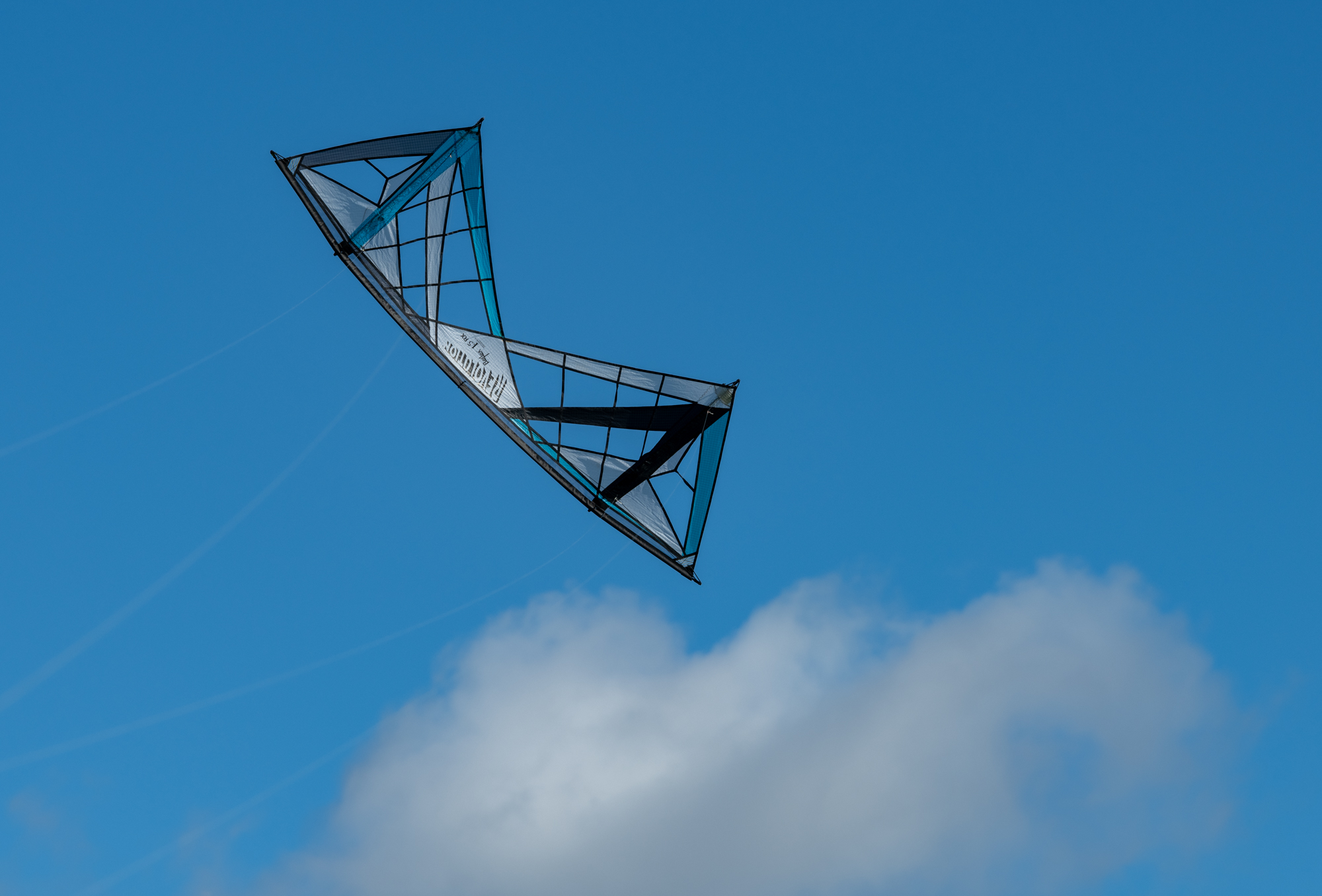

Flight test blue right, black left. Blackheath 5th November 2023.
5
5
5
